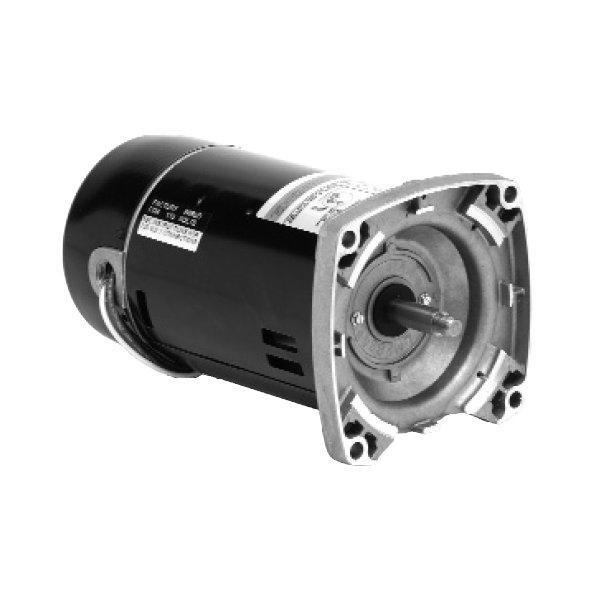

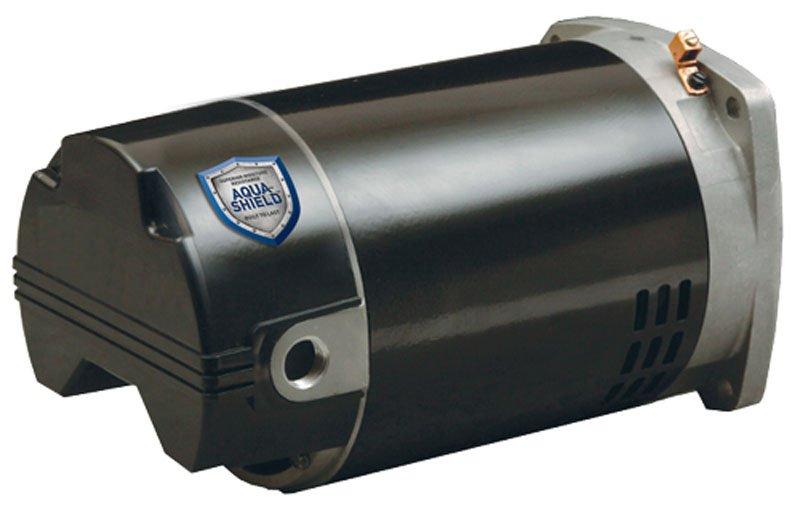

U.S. Motors - Emerson 56Y TriStar Single Speed 1HP Full-Rated Pool and Spa Motor
$269.99
The Emerson 56 Y-Frame Hayward TriStar is a reliable motor that provides power and efficiency in its 56 frame body.
More Details
How to get it
Store Pickup
Pickup In Store
The Emerson 56 Y-Frame Hayward TriStar is a reliable motor that provides power and efficiency in its 56 frame body.
- 1081 Design
- Shaft Threads 1/2-20 UNF-2A
- Continuous Duty
- 50 Degrees Celsius Ambient
- Voltage Selection Device (Dual Voltage Only)
- Triple Bearing Protection
- Service Factor: 1.35
- RPM: 3450
- Amps: 8.5-7.4/14.8
- Length without Shaft: 12.24
- 208-230/115V
The Emerson 56 Y-Frame Hayward TriStar is a reliable motor that provides power and efficiency in its 56 frame body. Boasting Two Compartment and stainless steel design, it's made to handle harsh pool and spa environments. Protected by sealed ball bearings and an open drip proof enclosure, the Emerson 56 Y-Frame Hayward TriStar motor is sure to bring you years of use. Its threaded shaft allows for a secure fit while providing a stronger structure. Its large 6.5 frame is built for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. Featuring 1 HP and single phase wiring, you can be sure to get consistent and reliable operation.
Featuring basic Single Phase wiring, the Emerson 56 J-Frame C-Flange motor delivers efficient operation. Little maintenance is required and the Emerson 56 J-Frame C-Flange motor is built to last
Advanced in its design, the Emerson 56 Y-Frame Hayward TriStar motor comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 56 Y-Frame Hayward TriStar motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs
| Service Factor: | 1.75 - 2.00 |
| Horsepower: | 1 HP |
| Voltage: | 115V / 208 - 230V |
| Flange Type: | Square Flange |
| Speed Settings: | Single Speed |
| Energy Efficiency: | High Energy Efficiency |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Manufacturer: | U.S. Motors Emerson |
See Owner's Manual for details
