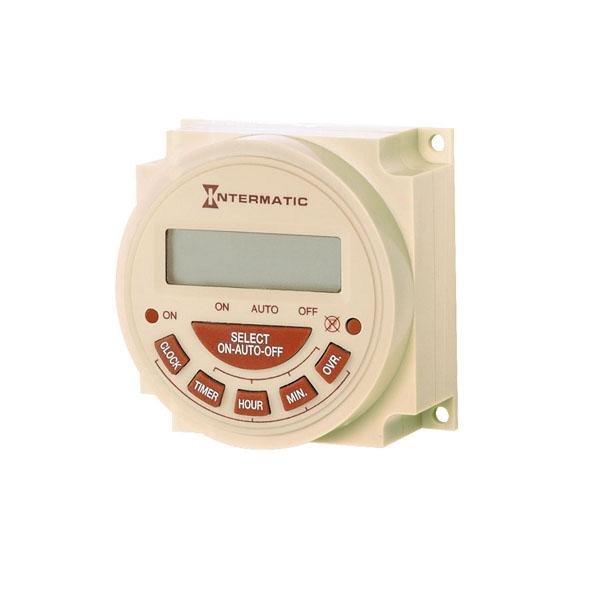

Intermatic 120V 40 Amp Timer Switch-Double Pole/Single Throw - T103
- Enclosure: Beige electrical grade plastic.
- Size: PB300 Series: 2-3/8 (6.0 cm) high and wide. EB suffix: 1-1/18 (28 cm) deep. E suffix: 7/8 (2.2 cm) deep.
- Electrical Rating: A = 16 Amp resistive, 0.5 HP motor load 24, 120 or 240 volts, 50-60 Hz; B = 20 amp resistive, 10 amp (1200 watt) tungsten, 16 FLA (1 HP) motor load, 720 VA pilot duty - 120 volt, 50-60 Hz; C = 20 amp resistive, 12 FLA (2 HP) - 240 volts, 50-60Hz
- Agency Approval: UL
These heavy duty Time Switch Mechanisms are designed for industrial, commercial and residential applications, and have the highest motor load ratings in the industry. They provide up to 12 ON-OFF operations each day with minimum ON-OFF time of 1 hour. All models are equipped with ON and OFF trippers and can be installed in almost all Intermatic enclosures.
| Voltage: | 120V |
| Product Type: | Automatic Control |
| Manufacturer: | Intermatic |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
