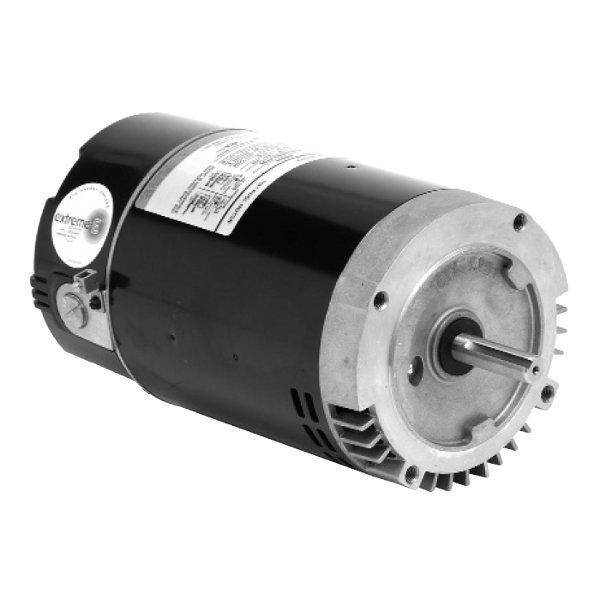

U.S. Motors - ASB2983T 56Y Square Flange 2-1/4HP Full Rated Two-Speed with Timer Pool and Spa Motor
$609.99
The U.S. Motors ASB2983T 56Y Square Flange 2-1/4HP Full Rated Two-Speed with Timer Pool and Spa Motor is a distinguished replacement motor for spas and pools.
More Details
How to get it
FREE standard delivery on orders of $75+ for members.
Join free or sign in
Store Pickup
Pickup In Store
The U.S. Motors ASB2983T 56Y Square Flange 2-1/4HP Full Rated Two-Speed with Timer Pool and Spa Motor is a distinguished replacement motor for spas and pools.
- Two Compartment
- Shaft Threads 7/16-20 UNF-2A
- 50 Degree C Ambient
- 1081 Design
- Continuous Duty
- Class B Insulated
- 303 Stainless Steel Shaft
- Thermally Protected
- Fully Integrated Motor Timer
- Program for Low and High Speeds
- High/Low Speed Override
- 9.2/2.1A 230V
- Ensure the pool motor is compatible with your pool pump.
- Turn pump power off during replacement.
- Check voltage requirements on your current setup.
- Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
- Turn on the pump to test for leaks and pump operation.
- Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
- Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
The Emerson 56 Y-Frame Motor is a distinguished replacement motor for spas and pools. It comes with thermal protection as a preventative measure against overheating, as well as a freeze sensor to guard against freeze damage. Engineered with premium efficiency, the Emerson 56 Y-Frame motor is program for both low and high speeds and comes with a Monday to Friday setting and a weekend setting. It also includes a 6.5 diameter frame, as well as a fully integrated motor timer for total control. It runs at 2-1/4/0.38 HP 3450/1725 RPM with 230V.
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Motor delivers efficient operation. Little maintenance is required and it is built to last
Advanced in its design, The Emerson 56 Y-Frame Motor comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 56 Y-Frame Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs
| Flange Type: | Square Flange |
| Service Factor: | 1.25 - 1.50 |
| Energy Efficiency: | High Energy Efficiency |
| Voltage: | 230V |
| Rating Type: | Full-Rated |
| Motor Frame: | 56 Frame |
| Product Type: | Pool Motor |
| Manufacturer: | U.S. Motors Emerson |
| Horsepower: | 2.25 / 0.38 |
| Speed Settings: | Dual Speed |
See Owner's Manual for details
