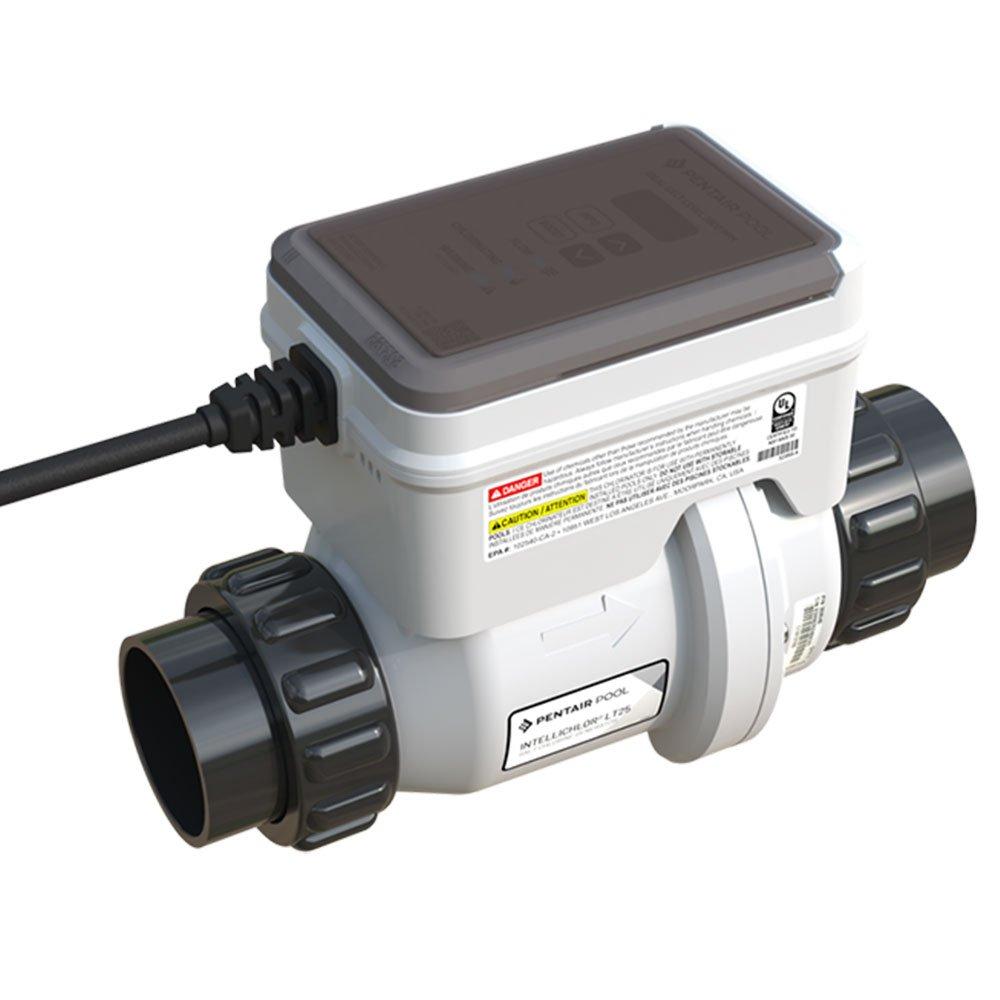

Pentair - 523747-EC IntelliChlor LT25 Replacement Salt Cell, 25,000 Gallons
$979.00
Pentair Intellichlor LT25 Salt Chlorine Generator Cell for up to 25,000 Gallons provides more serviceability, accuracy, and value than Pentair's first-generation IntelliChlor.
More Details
How to get it
FREE standard delivery on orders of $75+ for members.
Join free or sign in
Store Pickup
Pickup In Store
Ship To Home
- Not Available for this item
Pentair Intellichlor LT25 Salt Chlorine Generator Cell for up to 25,000 Gallons provides more serviceability, accuracy, and value than Pentair's first-generation IntelliChlor.
- Easy replacement for Pentair EC-520554 IntelliChlor IC20 Salt Cell
- Sanitizes pools up to 25,000 gallons
- Chlorine output: 0.90 lbs every 24 hours at 100%
- Provides an alternative to buying, handling, storing, and carrying chlorine.
- Drop-in replacement for existing Pentair salt chlorine generators, which requires no additional plumbing.
- Compatible with existing IntelliChlor Power Center and Pentair automation systems.
- Modular design enables simple replacements for electronics and sensors
- Redesigned conductivity sensor provides more accurate salt level readings
- Easy-to-read LCD/LED interface with 20+ built-in diagnostics and warnings.
- Acid cleaning kit provided with all units makes routine cleaning easier.
- Ensure the pool salt cell is compatible with your pool salt chlorination system
- Turn off your pool pump and power supply before safely handling the salt cell installation
- Remove the old salt cell by unscrewing the unions that connect the cell to the plumbing lines
- Install the new pool salt cell, tighten the unions by hand and ensure the cell is properly aligned with the plumbing
- Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
- Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
Pentair IntelliChlor Plus and LT Salt Chlorine Generators
The Pentair IntelliChlor LT25 Replacement Salt Cell requires the Pentair EC-520556 IntelliChlor Power Center (sold separately) for operation. The Pentair IntelliChlor LT25 Replacement Salt Cell is designed to sanitize pools up to 25,000 gallons. The IntelliChlor LT25 Salt Chlorinator automatically generates pure chlorine from the salt water that passes through the plates inside the cell. With a salt chlorinator, you are still sanitizing with chlorine but it is a more pure form of chlorine. This process of salt chlorination provides soft and silky smooth feeling swimming pool water. Using the IntelliChlor Salt Chlorinator provides sanitized safe water and a more comfortable swimming experience.

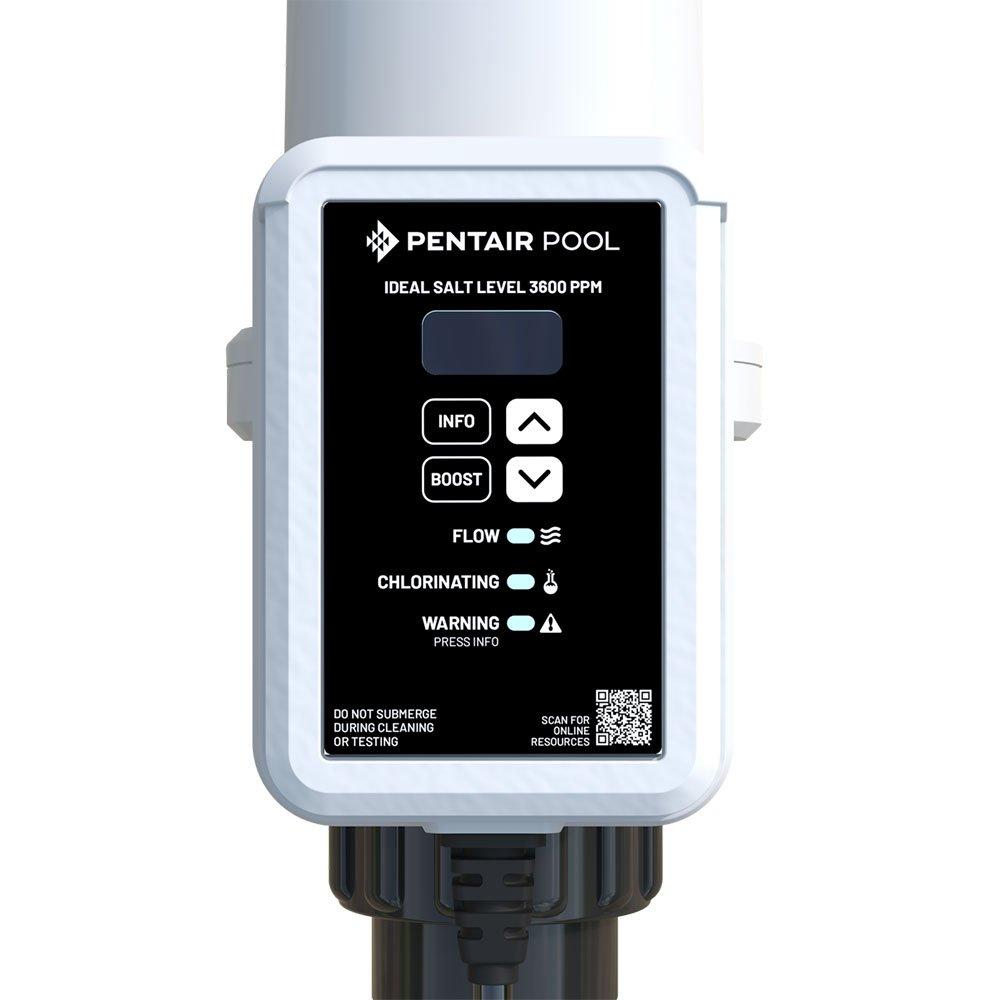

At the heart of this top-of-the-line chlorine generation system is the IntelliChlor cell. While most other big name salt chlorination systems use a power center equipped with a display to control the chlorination, the IntelliChlor LT25 Pool Salt Cell features an easy-to-read LCD/LED control display right on the unit itself. The user-friendly functions found on the control display make monitoring chlorine output, water flow, salt levels and cell cleanliness an absolute breeze.
When it comes to durability and reliability, the IntelliChlor Chlorine Generator cell is simply unmatched. Each and every cell is built with titanium blades coated with ruthenium oxide, which is responsible for chlorine production. To top it off, the IntelliChlor LT25 cell features waterproof electronics so you won't have to worry about leaks or other issues damaging the controls.
To help extend the life of the salt cell, be sure to inspect it every three months. Calcium can build up inside the plates over time and can hinder the performance of chlorine production in the cell. Use the acid wash stand provided to help make cleaning the cell quick and easy.
The Pentair IntelliChlor LT25 Replacement Salt Cell is one of the best choices for producing chlorine to keep your pool water clean and safe to enjoy.
At the heart of this top-of-the-line chlorine generation system is the IntelliChlor cell. While most other big name salt chlorination systems use a power center equipped with a display to control the chlorination, the IntelliChlor LT25 Pool Salt Cell features an easy-to-read LCD/LED control display right on the unit itself. The user-friendly functions found on the control display make monitoring chlorine output, water flow, salt levels and cell cleanliness an absolute breeze.
When it comes to durability and reliability, the IntelliChlor Chlorine Generator cell is simply unmatched. Each and every cell is built with titanium blades coated with ruthenium oxide, which is responsible for chlorine production. To top it off, the IntelliChlor LT25 cell features waterproof electronics so you won't have to worry about leaks or other issues damaging the controls.
To help extend the life of the salt cell, be sure to inspect it every three months. Calcium can build up inside the plates over time and can hinder the performance of chlorine production in the cell. Use the acid wash stand provided to help make cleaning the cell quick and easy.
The Pentair IntelliChlor LT25 Replacement Salt Cell is one of the best choices for producing chlorine to keep your pool water clean and safe to enjoy.
Common Questions:
How much salt is required?- The ideal salt level is recommended to be 3,600 ppm.
- The cell should be inspected every three months and cleaned when needed.
- Yes, salt systems are designed to maintain a 3 - 4 PPM chlorine residual.
| Product Type: | Salt Cell |
| Installation Type: | Residential |
| Pool Type: | In Ground |
| Gallons: | Up to 25,000 Gallons |
| Manufacturer: | Pentair |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
