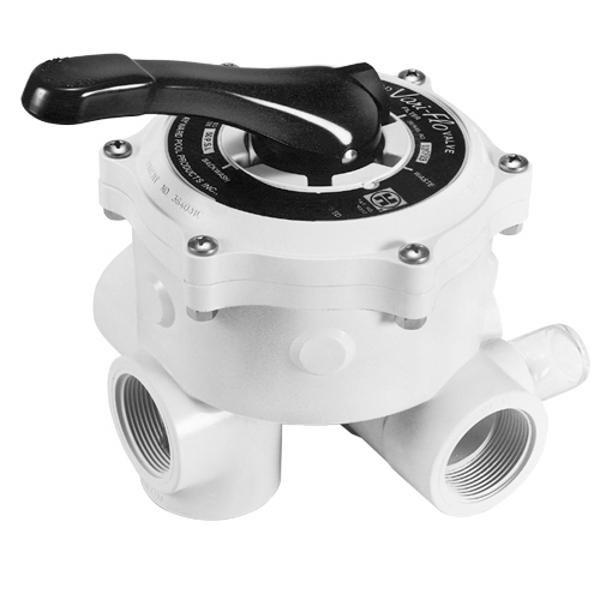

Hayward - Vari-Flo Control 1-1/2in. FIP Valve Side Mount In Line Sight Glass, White

Item No. 42110 | Manufacturer SKU: SP0710XALL
Item No. 42110 | Manufacturer SKU: SP0710XALL
Hayward  Vari-Flo Control 1-1/2in FIP Valve Side Mount In Line Sight Glass White
Hayward  Vari-Flo Control 1-1/2in FIP Valve Side Mount In Line Sight Glass White
$229.99

Hayward SP0710XALL Vari-Flo multiport control valve, is engineered for maximum flow at lower pressure drops is the choice in multiport valves. More Details
How to get it
FREE standard delivery on orders of $75+ for members.
Store Pickup Pickup In Store

Hayward SP0710XALL Vari-Flo multiport control valve, is engineered for maximum flow at lower pressure drops is the choice in multiport valves.
  • Filter - For normal filtering and regular vacuuming
  • Backwash - For cleaning filter sand bed of accumulated debris
  • Rinse - Use after completing backwash cycle to ensure all dirty water is rinsed out of the filter to waste
  • Waste - By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line
  • Recirculate - Water is recirculated through the valve, by-passing the filter
  • Closed - Shuts off the flow from the pump to the filter
  • Winter - For winterizing (SP0714T Only)
Installation Instructions:
  • Ensure the multiport valve is compatible with your pool filter
  • Turn Off the Pump & Drain the System - Before starting, ensure the pool pump is off and drain any water from the filter system to prevent leaks.
  • Remove the Old Valve - Disconnect the plumbing lines and unscrew the unions attaching the old valve to the filter.
  • Install the New Valve - Secure the new valve onto the filter, reconnect the plumbing, and ensure all connections are tight.
  • Test the System - Turn the pump back on, check for leaks, and ensure the valve is functioning correctly.
  • Please reference additional installation instructions in the owner's manual located in the Guides and Documentation section below.
  • Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.

Haywards Vari-Flo multiport control valve, is engineered for maximum flow at lower pressure drops is the choice in multiport valves.

All Vari-Flo valves feature an easy-to-use lever action handle that lets you dial up to seven valve/filter functions: filter, backwash, waste, rinse, closed, winter or recirculate. Complete with an integral sight glass that lets you see when the backwashing cycle is completed, our wide selection of valve configurations allows you to match the right Vari-Flo valve to the proper application; residential, commercial, top-mount or side mount.

Valve Type: Multiport
Size: 1-1/2 inches
Color: White
Filter Type: Sand
Product Type: Pool Valve
Manufacturer: Hayward

See Owner's Manual for details
