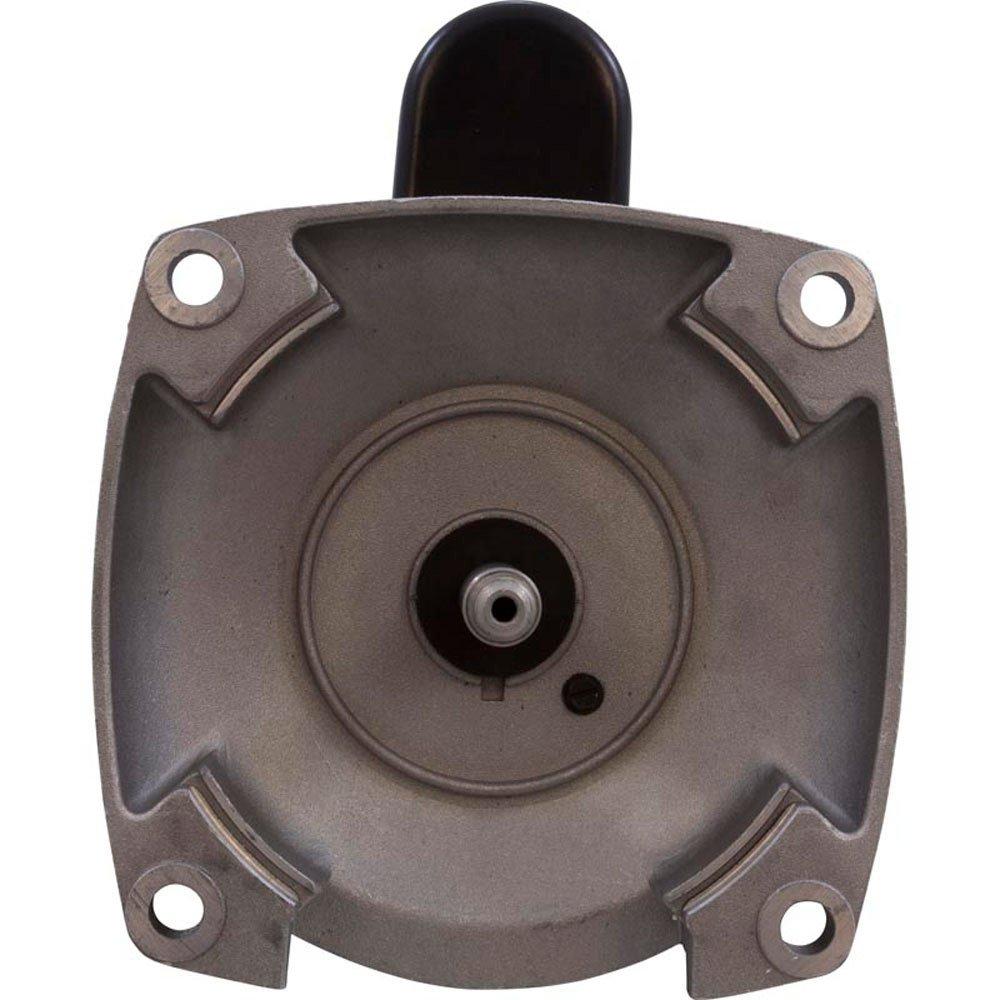

Century A.O. Smith - E-Plus 56Y Square Flange 1/2HP Full Rated Pool and Spa Pump Motor
Century A.O. Smith - E-Plus 56Y Square Flange 1/2HP Full Rated Pool and Spa Pump Motor
Subscription Available
$389.99
Earn at least $19 in pool perks for this item by joining Pool Perks.
Store Pickup
Out of stock
Available at store in 1-2 weeks
Want it faster?
Check other stores
Store Pickup
Pickup In Store
Standard Shipping - Ship To Home
Want it today?
Select a store to check stock
Description
The Century Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency.
- Ball Bearings
- 50 C Ambient
- Rotation: CCW Pump End
- 60 Hertz
- Class B Insulation
- Stainless Steel Shafts
- 4.5-4.4/8.8A 208-230/115V
Details
The Century Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. Equipped with an auto overload protector and ball bearings, the Century Pool and Spa Pump Motor provides long lasting operation. The Century Pool and Spa Pump Motor has a threaded shaft that allows for convenient and direct mounting. Available in a horsepower rating of 1/2"P, the Century Pool and Spa Pump Motor is Full-Rated, providing long lasting and trustworthy operation. The Century Pool and Spa Pump Motor meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.
Highlights
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
Specs
| Motor Frame: | 56Y Frame |
|---|---|
| Shaft Type: | Threaded |
| Energy Efficiency: | High Energy Efficiency |
| Flange Type: | Square Flange |
| Voltage: | 120V / 240V |
| Pool Type: | Spa/Hot Tub |
| Phase Type: | Single Phase |
| Installation Type: | Residential |
| Horsepower: | 1/2 HP |
| Service Factor: | 1.75 - 2.00 |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Compatible Pumps: | 011578 |
| Compatible Pumps: | 011511 |
| Compatible Pumps: | 342232 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Pump Speed: | Single |
| Service Factor: | 1.9 |
| Total Horsepower: | 0.95 THP |
| Speed Settings: | Single Speed |
Warranty
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
