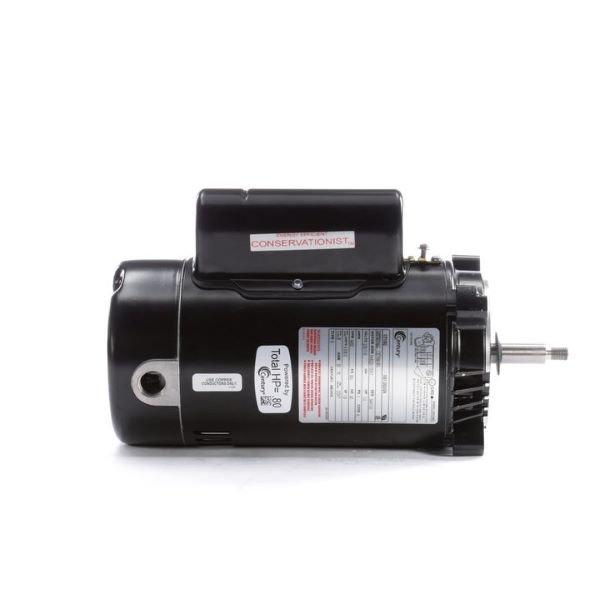

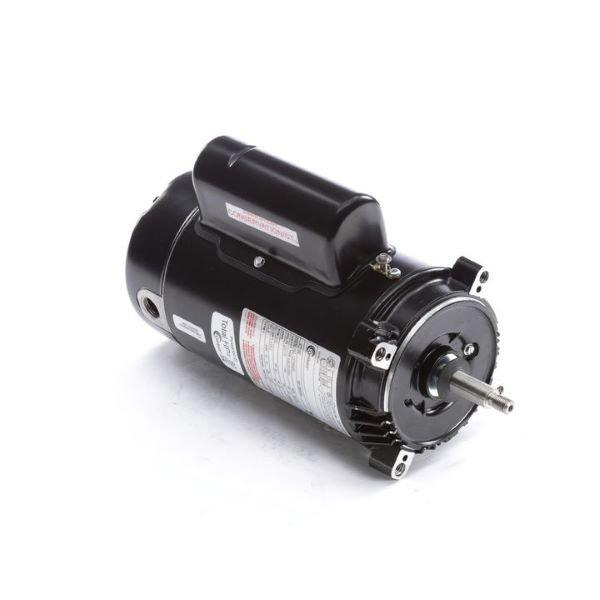

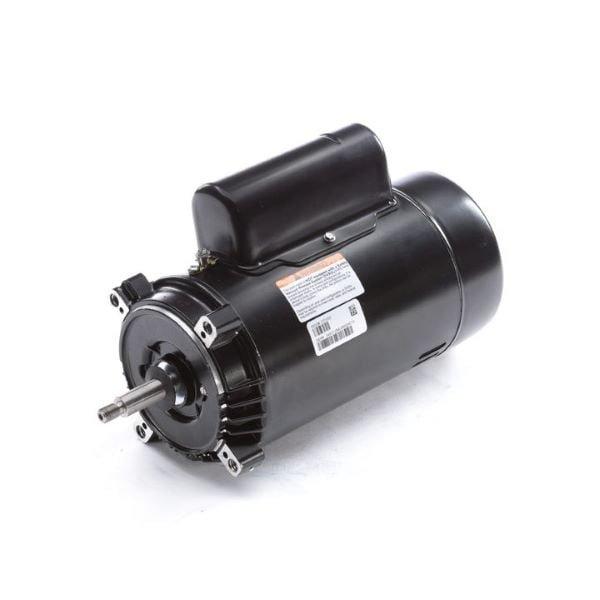

Century A.O. Smith - 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor, 8.0/4.0A 115/230V
$319.99
Login now to save 10% when you Buy Online and Pick Up In Store. Discounts cannot be combined with existing discounted items or MAP items.
The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design.
More Details
How to get it
Store Pickup
Pickup In Store
The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design.
- Auto Protector
- NEMA 56C Face Mount
- Open Dripproof
- Capacitor Start and Capacitor Start-Capacitor Run
- Rotation: CCW Pump End
- Sealed Ball Bearings
- Sealed switch design
- 1081 Design
- 50 C Ambient
- 60 Hertz
- 303 Stainless Steel Shaft
The A.O. Smith NEMA C-Face Pool Filter Motor works effectively with its single speed design. With a horsepower rating of 1/2"P, the NEMA C-Face Pool Filter Motor is Full-Rated and provides long lasting and trustworthy performance. Its Energy Efficient capacitor start is run using a ?Conservationist? motor for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with an open drip proof enclosure, the NEMA C-Face Pool Filter Motor is sure to last. The NEMA C-Face Pool Filter Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor operates at a higher efficiency level than standard efficiency motors. Its aggressive stamina comes from durable bearings and smaller, increased aerodynamic cooling fans that work to eliminate failure rates and unnecessary energy expenditures, ultimately reducing high operating costs
Voltage: | 120V / 240V |
Service Factor: | 1.50 - 1.75 |
Speed Settings: | Single Speed |
Horsepower: | 1/2 HP |
Shaft Type: | Threaded |
Energy Efficiency: | High Energy Efficiency |
Flange Type: | C Flange |
Phase Type: | Single Phase |
Installation Type: | Residential |
Flange Type: | J Flange |
Voltage: | 115V / 230V |
Rating Type: | Full-Rated |
Product Type: | Pool Motor |
Motor Frame: | 56 Frame |
Manufacturer: | Century A.O. Smith |
Warranty: | 1-Year |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
