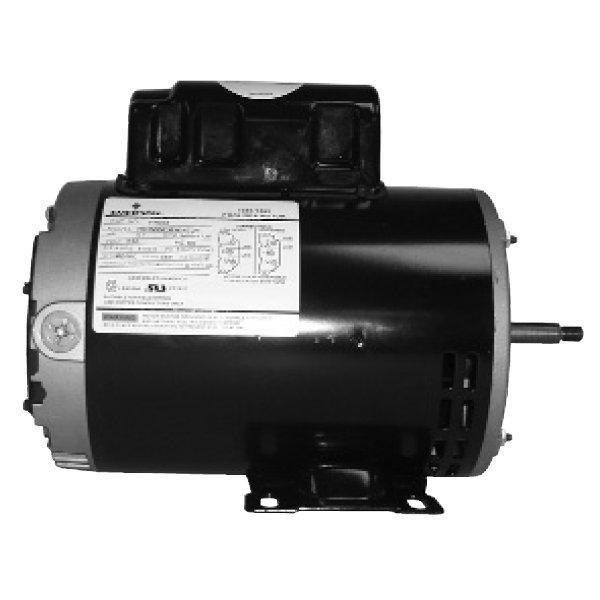

U.S. Motors - Emerson 56Y Thru-Bolt 1-Speed 3HP Full-Rated Premium Pool and Spa Motor
How to get it
Store Pickup
Pickup In Store
The Emerson 56 Y-Frame Thru-Bolt motor is the ultimate in efficiency.
- Class F Insulated
- Class B Temperature Rise
- 1081 and 1563 Design
- 3 Oft.Clock Conduit
- Shaft Thread 3/8-16 UNC-2A
- Switchless Design
- Service Factor: 1
- RPM: 3450
- 12A 230V
- Length without Shaft: 10.08
The Emerson 56 Y-Frame Thru-Bolt motor is the ultimate in efficiency. The Emerson 56 Y-Frame Thru-Bolt motor has a solid mounting frame for a rigid base and its thru-bolt design keeps the motor securely in place. Its structure is built with an open drip proof enclosure and sealed ball bearings for long lasting use. Its high ambient temperature of 60 degrees Celsius combined with its thermally protected design makes it extremely resilient in pool and spa environments. The Emerson 56 Y-Frame Thru-Bolt is a single speed pool and spa motor with full-rated 2 HP for reliable power.
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Hayward TriStar motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Hayward TriStar motor is built to last
Advanced in its design, the Emerson 56 Y-Frame Thru-Bolt motor comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 56 Y-Frame Thru-Bolt motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs
| Horsepower: | 3 HP |
| Flange Type: | Thru Bolt Mount |
| Energy Efficiency: | High Energy Efficiency |
| Pool Type: | Spa/Hot Tub |
| Speed Settings: | Single Speed |
| Service Factor: | 1.00 - 1.25 |
| Voltage: | 230V |
| Rating Type: | Up-Rated |
| Motor Frame: | 56 Frame |
| Product Type: | Pool Motor |
| Manufacturer: | U.S. Motors Emerson |
| Product Type: | Pool Part |
See Owner's Manual for details
