Waterway - 310-1510 Executive Wet End 56 Frame 5HP, 2-1/2" MBT x 2" MBT

Item No. 233299 | Manufacturer SKU: 310-1510
Item No. 233299 | Manufacturer SKU: 310-1510
Waterway 310-1510 Executive Wet End 56 Frame 5HP 2-1/2 MBT x 2 MBT
Waterway 310-1510 Executive Wet End 56 Frame 5HP 2-1/2 MBT x 2 MBT
$99.99
Waterway 310-1510 Executive Wet End 56 Frame 5HP, 2-1/2"MBT x 2"MBT More Details
How to get it
Store Pickup Pickup In Store

Waterway 310-1510 Executive Wet End 56 Frame 5HP, 2-1/2"MBT x 2"MBT
  • Manufacturer: Waterway
  • Pump Model: Executive
  • Motor Frame: 56 Frame Thru-Bolt
  • Drain Plug Location: 3,6,9 o`clock
  • Suction Style: Center
  • Suction Connection Type: Male Buttress Thread (mbt)
  • Suction Pipe Size: 2-1/2"
  • Discharge Style: Side
  • Discharge Connection Type: Male Buttress Thread (mbt)
  • Discharge Pipe Size: 2"
  • Horsepower: 5.0hp
  • Volute Fastening Type: 8 Screws

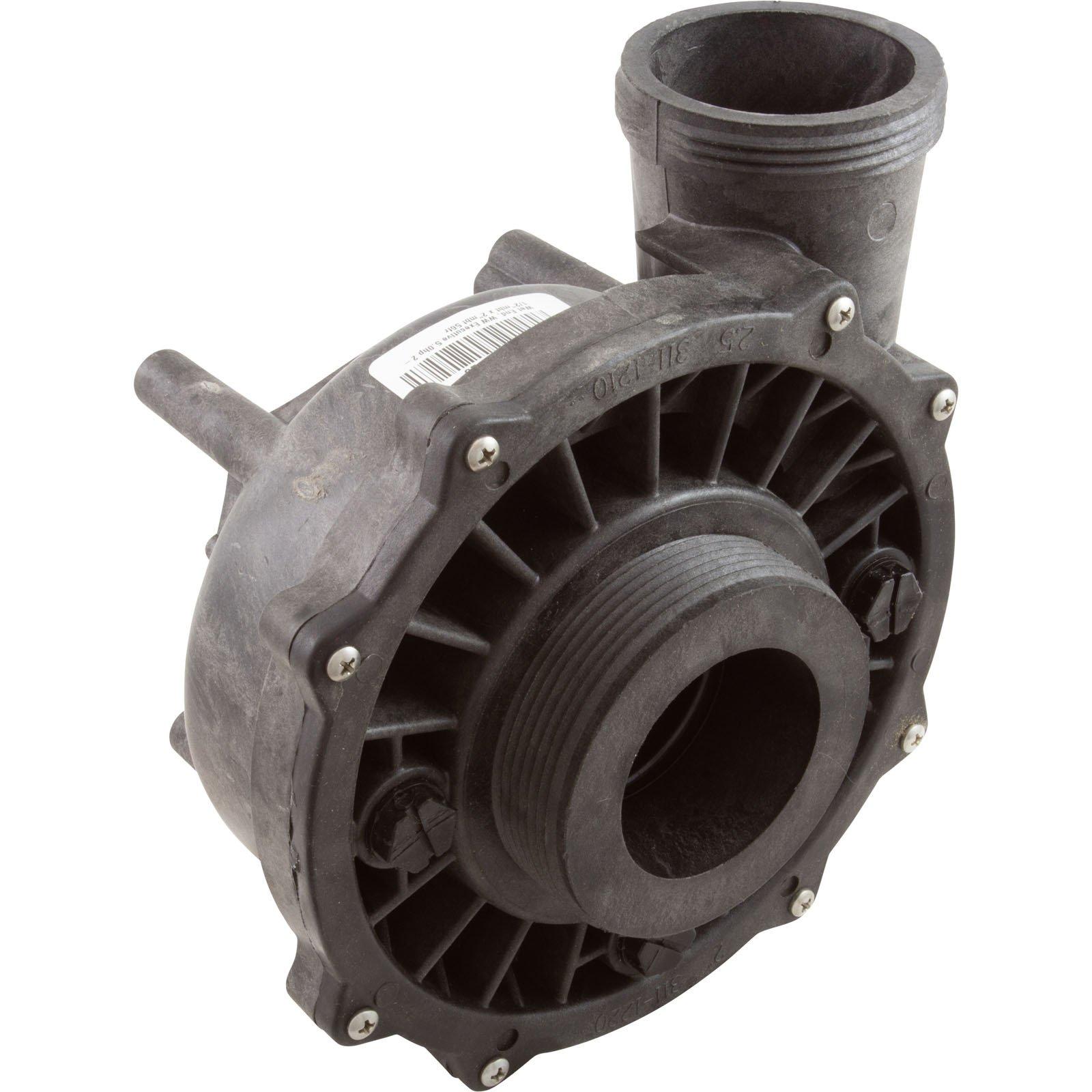

Side discharge, 2-1/2"mbt suction x 2"mbt discharge, 56 frame wet end for the Waterway Executive pump. This wet end is used with a 5.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.
