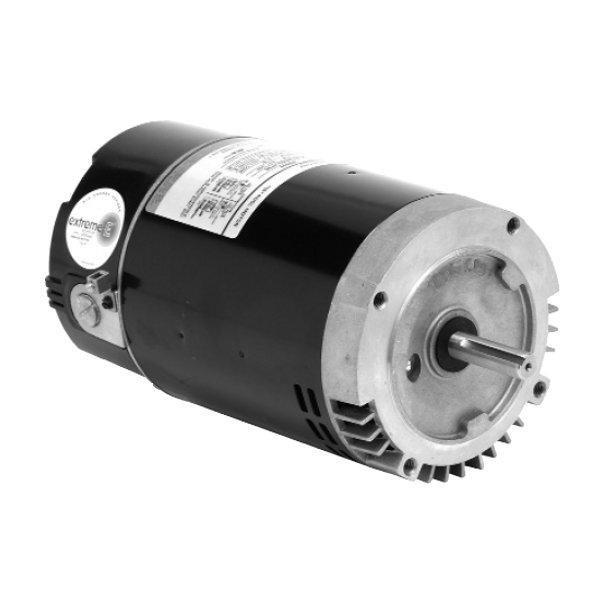

U.S. Motors - Emerson ASB127 56J C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor

Item No. 38626 | Manufacturer SKU: ASB127
Item No. 38626 | Manufacturer SKU: ASB127
U.S Motors  Emerson ASB127 56J C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor
U.S Motors  Emerson ASB127 56J C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor
$249.99

The U.S. Motors Emerson ASB127 56J C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor is drip-proof to prevent water damage, built with ventilation openings. More Details
How to get it
Store Pickup Pickup In Store

The U.S. Motors Emerson ASB127 56J C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor is drip-proof to prevent water damage, built with ventilation openings.
  • Shaft Threads - 7/16-20 UNF-2A
  • 50 Degree C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • 303 Stainless Steel Shaft
  • Thermally Protected
  • Service Factor: 1.5
  • RPM: 3450
  • Shaft: Threaded
  • 6.0/12.0A 115V/230V
  • Length without Shaft: 10.77
Installation Instructions:
  • Ensure the pool motor is compatible with your pool pump.
  • Turn pump power off during replacement.
  • Check voltage requirements on your current setup.
  • Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
  • Turn on the pump to test for leaks and pump operation.
  • Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
  • Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.

For precision and advanced technology, the Emerson 56 C-Flange Motor for pools and spas is engineered with a two-compartment design, sporting triple bearing protection and sealed ball bearings. With a switchless design, the Emerson 56 C-Flange Motor is drip proof to prevent water damage, built with ventilation openings. It requires little maintenance and has been designed for dependability and a long lifespan. The Emerson 56 C-Flange Motor consistently operates at one speed, working at 1/2"P and 115/230V.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last
C-Frame
The Emerson 56 C-Flange Motor boasts a C-Frame body with a threaded shaft for durable mounting and stability
Standard Efficiency
Emerson 56 C-Flange Motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Voltage: 120V / 240V
Pool Type: In Ground
Voltage: 115V / 230V
Flange Type: J Flange
Horsepower: 3/4 HP
Speed Settings: Single Speed
Service Factor: 1.50 - 1.75
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Energy Efficiency: Standard
Manufacturer: U.S. Motors Emerson
Pump Speed: Single
Service Factor: 1.5
Total Horsepower: 1.13 THP

See Owner's Manual for details
