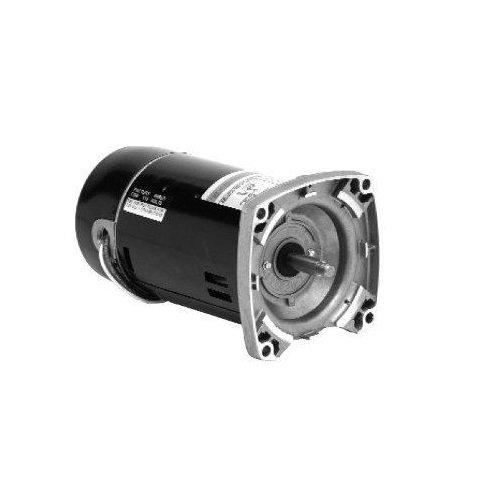

U.S. Motors - Emerson 56Y Square Flange Single Speed 1/2HP Full Rated Pool and Spa Motor

Item No. 623385 | Manufacturer SKU: ASB846
Item No. 623385 | Manufacturer SKU: ASB846
U.S Motors  Emerson 56Y Square Flange Single Speed 1/2HP Full Rated Pool and Spa Motor
$329.99

Installation Available! Call 1-800-537-5437 for details!

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. More Details

You can buy this product once, or subscribe to have this product delivered to you as frequently as you wish.

You can edit or cancel your membership anytime.
How to get it
Store Pickup Pickup In Store

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa.
  • Two compartments
  • Shaft Threads 1/2-20 UNF-2A
  • 50 degrees Celsius ambient
  • 1081 Design
  • Continuous Duty
  • Switchless design
  • Voltage selection device (dual voltage only)
  • Service Factor: 1.95
  • RPM: 3450
  • Amps: 7.7/15.4
  • Length without Shaft: 11.24"

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip proof enclosure that keeps water from flowing into the motor and its rear mounted fan keeps it cool during operation. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 1/2"HP rating delivers optimum performance.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Square Flange motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Square Flange motor is built to last
Y-Frame
Advanced in its design, Emerson 56 Square Flange motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Standard Efficiency
The Emerson 56 Y-Frame Square Flange motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Horsepower: 1/2 HP
Flange Type: Square Flange
Speed Settings: Single Speed
Voltage: 115V / 230V
Voltage: 120V / 240V
Service Factor: 1.75 - 2.00
Motor Frame: 56Y Frame
Pool Type: In Ground
Rating Type: Full-Rated
Energy Efficiency: Standard
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson
Product Type: Pool Part
Pump Speed: Single
Service Factor: 1.9
Total Horsepower: 0.95 THP

See Owner's Manual for details
