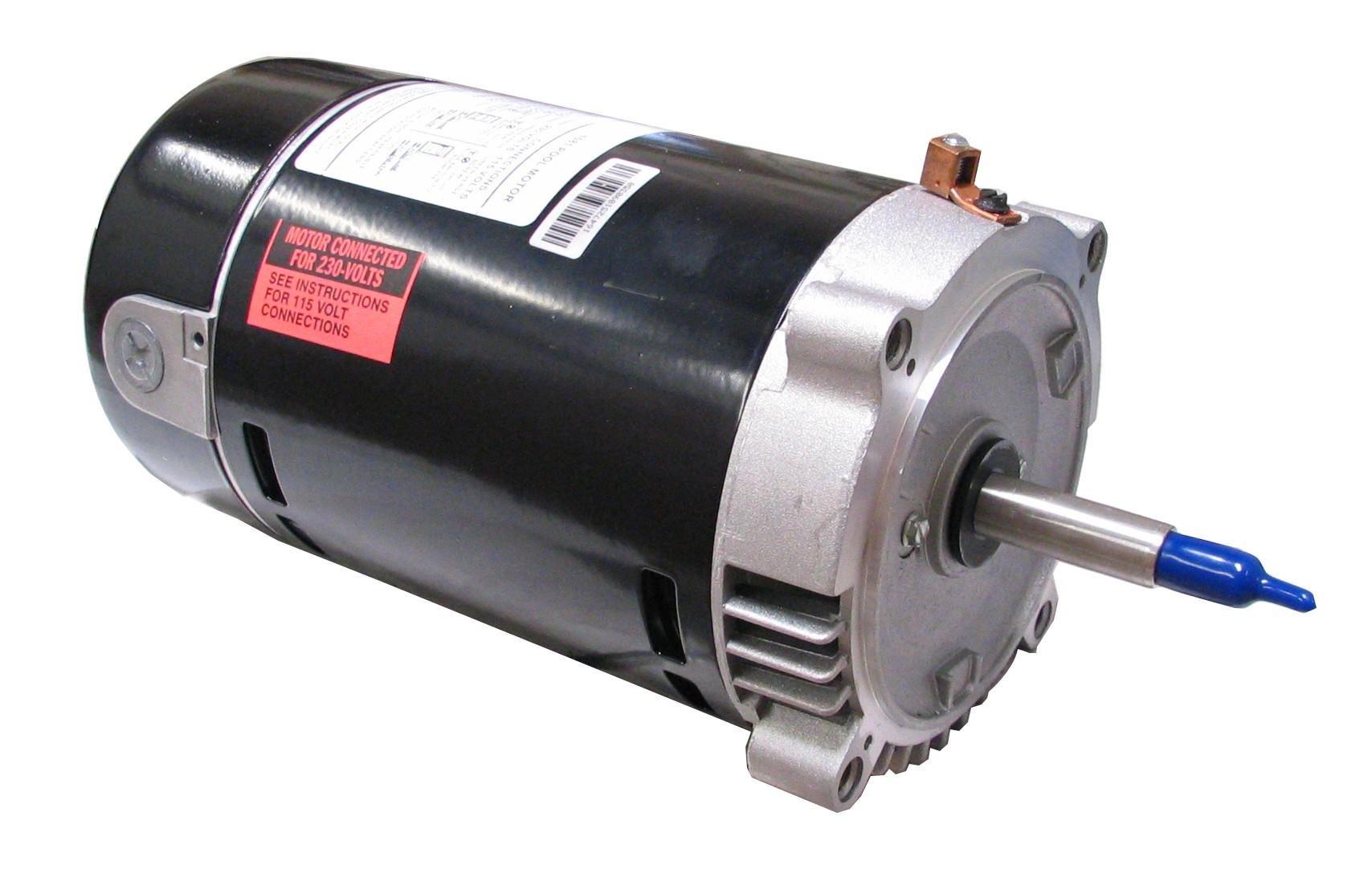

U.S. Motors - ASB128 56 J-Frame C-Flange Single Speed 1HP Full Rated Pool and Spa Motor

Item No. 38627 | Manufacturer SKU: ASB128
Item No. 38627 | Manufacturer SKU: ASB128
U.S Motors  ASB128 56 J-Frame C-Flange Single Speed 1HP Full Rated Pool and Spa Motor
U.S Motors  ASB128 56 J-Frame C-Flange Single Speed 1HP Full Rated Pool and Spa Motor
U.S Motors  ASB128 56 J-Frame C-Flange Single Speed 1HP Full Rated Pool and Spa Motor
U.S Motors  ASB128 56 J-Frame C-Flange Single Speed 1HP Full Rated Pool and Spa Motor U.S Motors  ASB128 56 J-Frame C-Flange Single Speed 1HP Full Rated Pool and Spa Motor U.S Motors  ASB128 56 J-Frame C-Flange Single Speed 1HP Full Rated Pool and Spa Motor
$279.99

The U.S. Motors Emerson ASB128 C-Flange Single Speed 1HP Full Rated 56J Pool and Spa Motor is drip-proof to prevent water damage, built with ventilation openings. More Details
How to get it
FREE standard delivery on orders of $75+ for members.
Store Pickup Pickup In Store

The U.S. Motors Emerson ASB128 C-Flange Single Speed 1HP Full Rated 56J Pool and Spa Motor is drip-proof to prevent water damage, built with ventilation openings.
  • Two Compartment
  • Shaft Threads - 7/16-20 UNF-2A
  • 50C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Open Dripproof
  • 300 Series Stainless Steel Shaft
  • Thermally Protected
  • Voltage Selection Device (Dual Voltage Only)
  • Optimized internal airflow design minimizes heat and moisture buildup inside the motor
  • Internal bearing cover protects the drive/pump end ball bearing from water and debris that may occur inside of the motor
  • Three additional layers of drive/pump end bearing protection: Double Sealed Ball Bearing, Lip Seal, Water Slinger
Installation Instructions:
  • Ensure the pool motor is compatible with your pool pump.
  • Turn pump power off during replacement.
  • Check voltage requirements on your current setup.
  • Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
  • Turn on the pump to test for leaks and pump operation.
  • Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
  • Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.

U.S. Motors is a brand of Nidec, the worlds largest manufacturer of electric motors. Nidec is on the forefront of technology advancements for "everything that spins and moves."

Standard Efficiency
Emerson 56 C-Flange Motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model
C-Frame
The Emerson 56 C-Flange Motor boasts a C-Frame body with a threaded shaft for durable mounting and stability
Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last

See Owner's Manual for details
