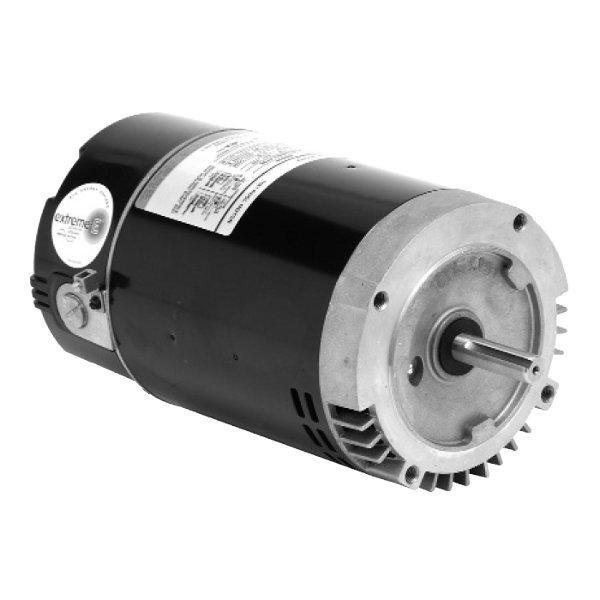

U.S. Motors - 1HP Squared 2 Speed Motor
The Emerson 56 Y-Frame Motor is a quality replacement motor for your pool or spa.
- Two Compartment
- Shaft Threads 1/2-20 UNF 2A
- 50 Degree C Ambient
- 1081 Design
- Continuous Duty
- Class B Insulated
- 303 Stainless Steel Shaft
- 7.4/1.3A 230V
The Emerson 56 Y-Frame Motor is a quality replacement motor for your pool or spa. Its open drip proof design prevents water damage with strategically placed ventilation openings. It sports a switchless design for higher efficiency, and it has been engineered with both sealed ball bearings and triple bearing protection for longevity. The Emerson 56 Y-Frame is thermally protected to prevent overheating and comes with a stainless steel shaft for durability. It operates with dual speed at both 1.0HP and .16HP with 230V.
The Emerson 56 Y-Frame Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs
Advanced in its design, The Emerson 56 Y-Frame Motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Motor delivers efficient operation. Little maintenance is required and it is built to last
See Owner's Manual for details
