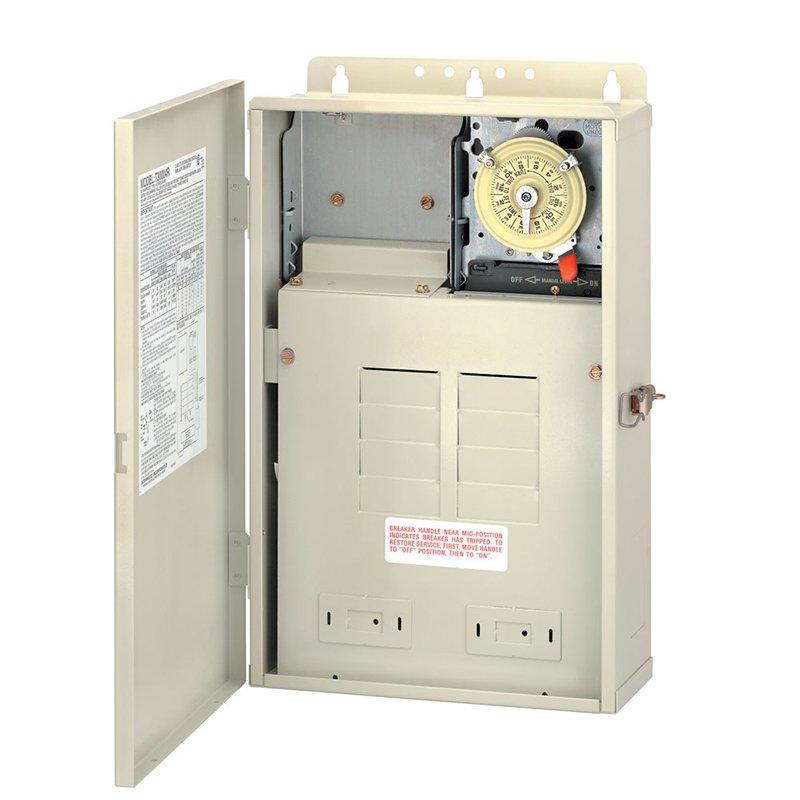

Intermatic - One T104M In 16 X 10 X 4.5 In. Outdoor Enclosure
$379.99
Intermatic One T104M In 16 X 10 X 4.5 In. Outdoor Enclosure is a replacement pool part to keep your swimming pool equipment working like new.
More Details
How to get it
Store Pickup
Pickup In Store
Intermatic One T104M In 16 X 10 X 4.5 In. Outdoor Enclosure is a replacement pool part to keep your swimming pool equipment working like new.
- Case: 16-1/2 (41.9 cm) H x 10-7/8 (27.6 cm) W x 4-1/4 (10.8 cm) D, 0.048 steel with electrostatically applied beige finish.
- Knockouts: Two 1/2, three combination 1/2-3/4, and two combination 3/4-1 knockouts on the bottom. Four 1/2, three combination 1/2" - 3/4" on the back. One combination 3/4-1 on the left side. One 1-3/4 x 2-3/4 knockout on the right side for mounting switches and GFCI.
- Panel Rating: 100 Amp., 120-240 VAC or 120-208 VAC single phase - 60Hz.
- Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) - 240 VAC
- Agency Approval: CSA/C-US
The T30000R Series Control Panels reduce installation costs and provide all of the electrical requirements for any pool and/or spa installation. They offer an all-in-one electrical control center which can be custom wired for a wide variety of requirements, and eliminate the need for additional junction boxes and service panels. The enclosure accepts any combinations of P1353ME or P4243ME or T100M or RC2000M or PF1000M Series mechanisms.
| Voltage: | 120V / 240V |
| Control System Type: | Control System |
| Product Type: | Automatic Control |
| Manufacturer: | Intermatic |
| Warranty: | 1-Year |
