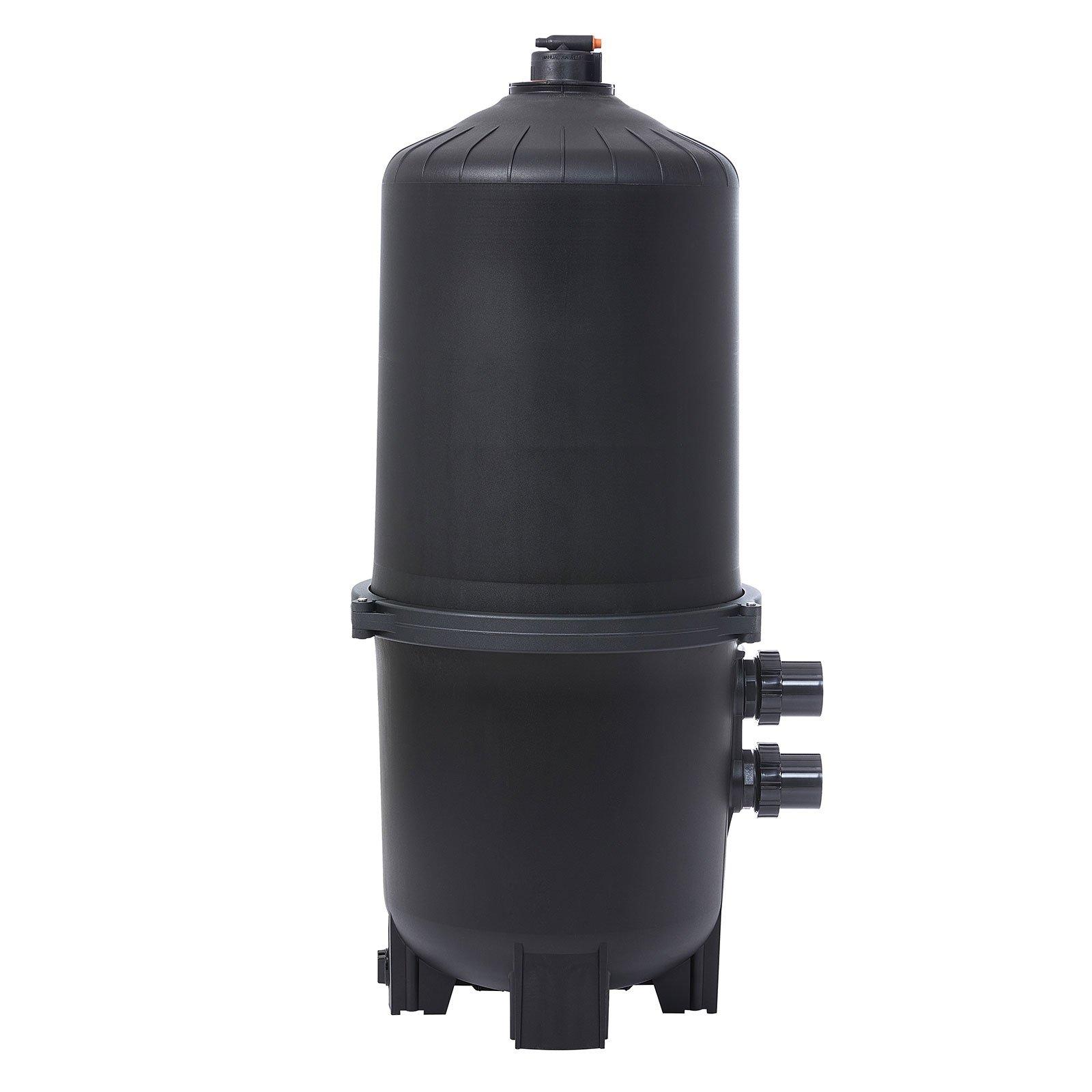

Hayward - W3C5030 SwimClear 525 sq. ft. Cartridge Pool Filter
$1,859.00
20% Off Installation on Sand, DE, and Cartridge Pool Filters
Click here to schedule an installation
Starting at $91/mo or 0% APR with Affirm. Learn more
Hayward W3C5030 SwimClear 525 Sq Ft Pool Cartridge Filters feature high-strength filter tanks that are ultimate in durability and long life.
More Details
How to get it
FREE standard delivery on orders of $75+ for members.
Join free or sign in
Store Pickup
Pickup In Store
Frequently Bought Together
+
+
Total price: $8,257.00
Total price: $8,257.00
This item:
W3C5030 SwimClear 525 sq. ft. Cartridge Pool Filter
$1,859.00W3SP3206VSP TriStar Variable Speed Pool Pump, 2.7 THP, 115/230V
$2,199.00W3H400FDN Universal H-Series, Low NOx, 400K BTU, Natural Gas, Pool & Spa Heater
$4,199.00
Hayward W3C5030 SwimClear 525 Sq Ft Pool Cartridge Filters feature high-strength filter tanks that are ultimate in durability and long life.
- Includes four CX1280XRE filter cartridges
- Top Manifold
- Heavy-Duty, Tamper-Proof, One-Piece Clamp
- High-Strength Filter Tank
- Uniform Low-Profile Tank Base Design
- Full-Size 1-1/2 inch Integral Drain
- Pressure and Cleaning-Cycle-Indicator Gauge
- Quad-Cluster Cartridge Elements
- Self-Aligned Tank Top and Bottom
- CPVC Union Coupling Connection
- Noryl Bulkhead Fittings
- Manual Air Relief
- Replacement cartridge filter: Unicel C-7494
- Ensure the pool filter is compatible with your pool equipment.
- Check and match the pool filter's inlet and outlet pipes of your pool system.
- Place and secure the pool filter is on a level and secure foundation. (Attach to the mounting base or frame if required).
- Turn on the pump to test the pool filter. Watch for leaks and make adjustments if necessary.
- Please reference additional installation instructions in the owner's manual located in the Guides and Documentation section below.
- Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
The Hayward W3C5030 SwimClear 525 sq. ft. Cartridge Pool Filter is a 4 cartridge filtration system used on inground pools. Capable of filtering particles as small as 30 microns, this means the filter is capable of pulling everything out that you can see with the human eye. The glass reinforced co-polymer high strength tank, one-piece clamp and 2" black bulkhead unions enhance its durability and ease of installation.
The Hayward SwimClear W3C5030 one-piece clamp design allows for easy removal and convenient access to each of the four cartridge filters. Internal air bleeding prevents air build-up from occurring, and its 1-1/2" drain ensures full draining during winterization. The Hayward W3C5030 SwimClear keeps pools sparkling and requires less maintenance for longer, better performance. Requires 68-1/2" vertical clearance for installation.
The Hayward SwimClear W3C5030 one-piece clamp design allows for easy removal and convenient access to each of the four cartridge filters. Internal air bleeding prevents air build-up from occurring, and its 1-1/2" drain ensures full draining during winterization. The Hayward W3C5030 SwimClear keeps pools sparkling and requires less maintenance for longer, better performance. Requires 68-1/2" vertical clearance for installation.
Common Questions:
What are the dimensions of the Filter?- Tank Size (DxH) 24" x 43-1/2"
- Approx. Weight 92 lbs
- The W3C5030 will come with four brand new cartridges, two 2" unions for install, the tank body, one-piece clamp assembly, air relief valve, and 3 year manufacturer warranty.
- Cartridges are sized 100 sq. ft. per 10,000 gallon of pool water is the minimum recommendation.
- No, The filter cartridges are cleaned manually every 4 months with the garden hose or cartridge filter cleaning solution.
- The Hayward W3C5030 has a 150 GPM max flow rate.
- Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
Cartridge Filters are a great option for those who want more energy efficient equipment, by reducing the pump pressure required for the filter operation. In addition to cost savings, lower pump pressure can help prolong the life of your pool pump!
Worry less about maintaining your filter with a Cartridge Filter system. Filter cartridges can be easily removed for replacement and regular washing to prolong their effectiveness.
Dirt particles as small as 10-15 microns get captured by Cartridge Pool Filters, making them perfect for pools that need an effective option for removing smaller debris and dust particles.
| Product Type: | Pool Filter |
| Filter Type: | Cartridge |
| Installation Type: | Residential |
| Filtration Area: | 525 sq ft |
| Eco-Friendly: | Yes |
| Manufacturer: | Hayward |
| Warranty: | 3-Year |
| Pool Type: | In Ground |
Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
