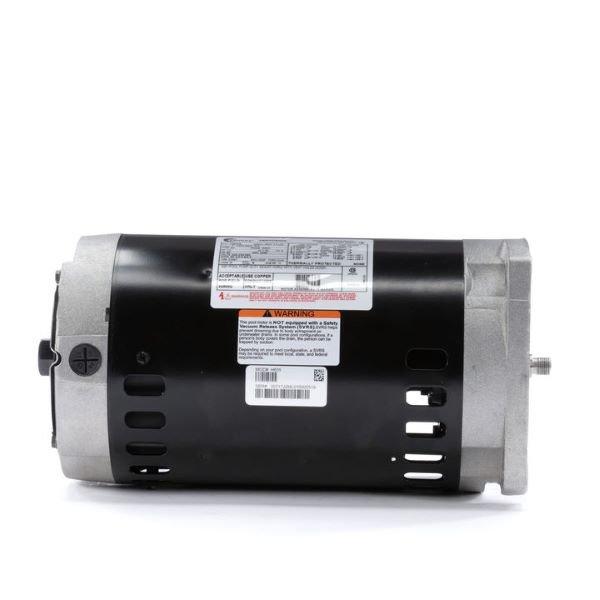

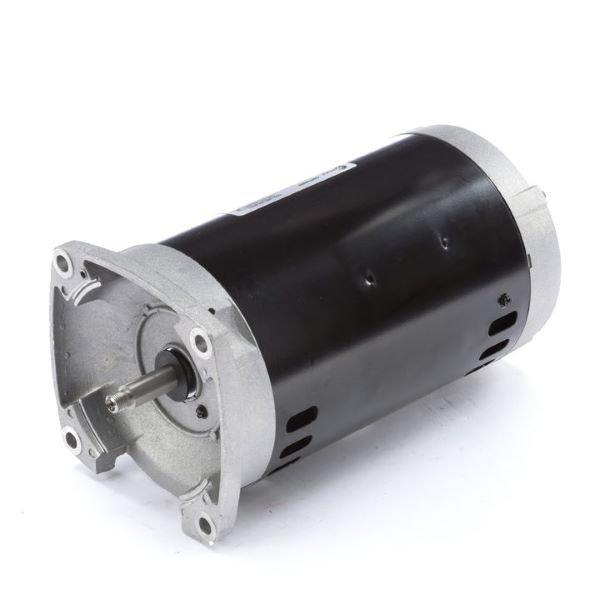

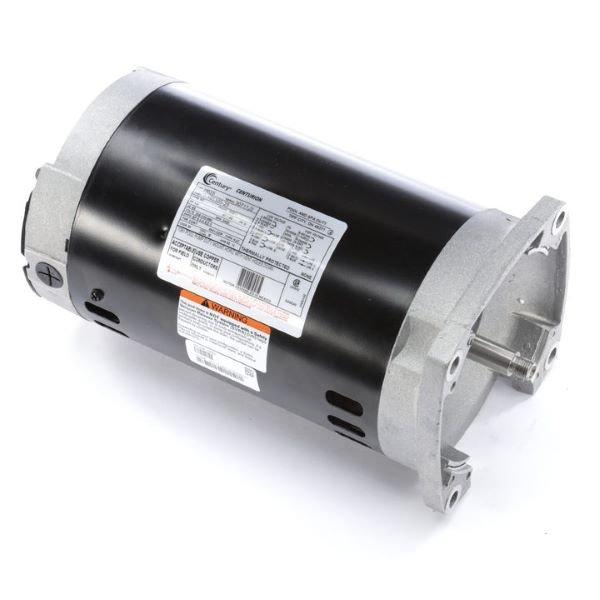

Century A.O. Smith - Centurion 56Y Square Flange 1 HP Three Phase Pool and Spa Pump Motor, 5.0-4.6/2.3A 208-230/460V
$419.99
Centurion 56Y Square Flange 1 HP Three Phase Pool and Spa Pump Motor is a premium replacement motor for pools and spas
More Details
How to get it
Store Pickup
Pickup In Store
Centurion 56Y Square Flange 1 HP Three Phase Pool and Spa Pump Motor is a premium replacement motor for pools and spas
- Ball Bearings
- 60 Hertz
- 50 C Ambient
- Class B Insulation
- 303 Stainless Steel Threaded Shaft
- Ensure the pool motor is compatible with your pool pump.
- Turn pump power off during replacement.
- Check voltage requirements on your current setup.
- Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
- Turn on the pump to test for leaks and pump operation.
- Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
- Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
Centurion Square Flange Motors are premium replacement motors for pools and spas. These motors are protected from water damage and have high-quality ventilation openings. They are equipped with ball bearings and stainless steel threaded shafts for protection against premature deterioration and sport Class B insulation, which is designed to keep motors from overheating. Operating at 60HZ, Centurion Square Flange Pool and Spa Motors are available with a 56Y-Frame, 1/2"P-3HP, and 208-230/460V for ideal performance.
Three Phase wiring runs steady and even for dependable performance and provides constant power without requiring a starting capacitor
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Installation Type: | Residential |
| Pool Type: | Spa/Hot Tub |
| Horsepower: | 1 HP |
| Phase Type: | Three Phase |
| Speed Settings: | Single Speed |
| Flange Type: | Square Flange |
| Motor Frame: | 56Y Frame |
| Voltage: | 208 - 230V / 460V |
| Voltage: | 230V / 460V |
| Shaft Type: | Threaded |
| Service Factor: | 1.50 - 1.75 |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Motor Frame: | 56 Frame |
| Compatible Pumps: | 011568 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
