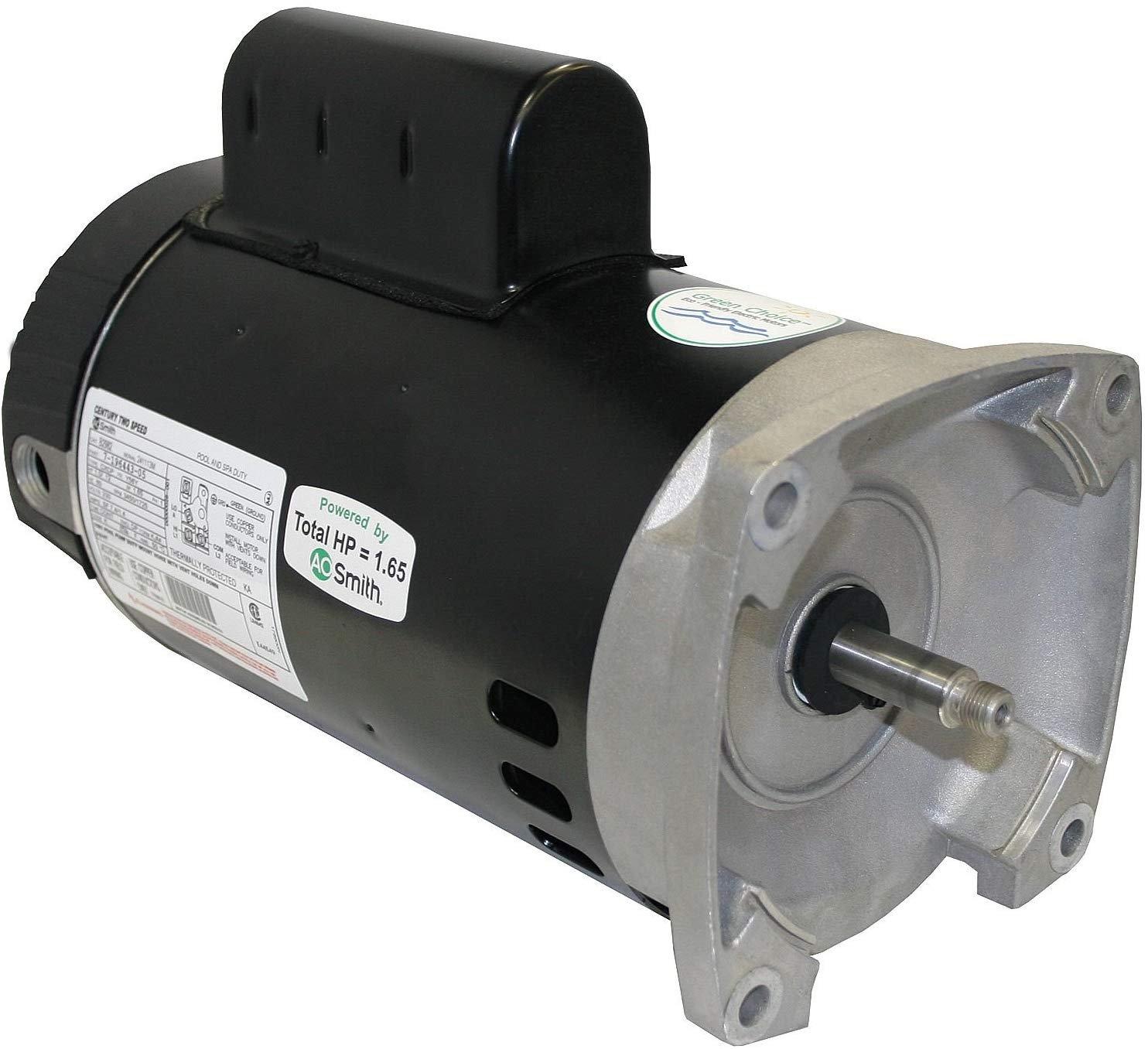

Century A.O. Smith - B2984 Square Flange Dual Speed Full Rated 56Y Pump Motor
Century A.O. Smith - B2984 Square Flange Dual Speed Full Rated 56Y Pump Motor
Subscription Available
$999.99
Earn at least $49 in pool perks for this item by joining Pool Perks.
Store Pickup
Out of stock
Available at store in 1-2 weeks
Want it faster?
Check other stores
Store Pickup
Pickup In Store
Standard Shipping - Ship To Home
Want it today?
Select a store to check stock
Description
B2984 Square Flange 2 or 0.25 HP Dual Speed Full Rated 56Y Pool and Spa Pump Motor, 11.0/1.8A 230V
- Ball Bearings
- Class B Insulation
- 50 C Ambient
- High Efficient High and Low Speed
- Open Dripproof
- Permanent Split Capacitor
- Rotation: CCW Pump End
- 303 Stainless Steel Shafts
Details
Century A.O. Smith B2984 Square Flange 2 or 0.25 HP Dual Speed Full Rated 56Y Pool and Spa Pump Motor, 11.0/1.8A 230V. The Century A.O. Smith Pool and Spa Pump Motor has two speeds and employs a PSC (Permanent Split Capacitor) to improve efficiency up to 20%. Full-Rated with a low service factor and equipped with an auto overload protector and ball bearings, the Century Pool and Spa Pump Motor provides long lasting and trustworthy operation. The Century Pool and Spa Pump Motor delivers optimum performance, available with horsepower ratings ranging from 3/4-.10HP to 2-.33HP. This spa pump motor meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.
Highlights
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
Specs
| Pool Type: | Spa/Hot Tub |
|---|---|
| Phase Type: | Single Phase |
| Voltage: | 230V |
| Installation Type: | Residential |
| Service Factor: | 1.25 - 1.50 |
| Shaft Type: | Threaded |
| Flange Type: | Square Flange |
| Speed Settings: | Dual Speed |
| Horsepower: | 2 or 0.25 HP |
| Rating Type: | Full-Rated |
| Product Type: | Pool Part |
| Motor Frame: | 56 Frame |
| Energy Efficient: | Yes |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
Warranty
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
