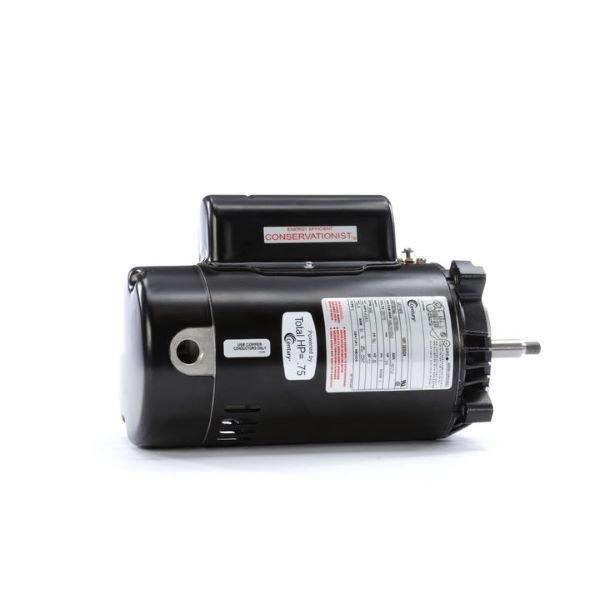

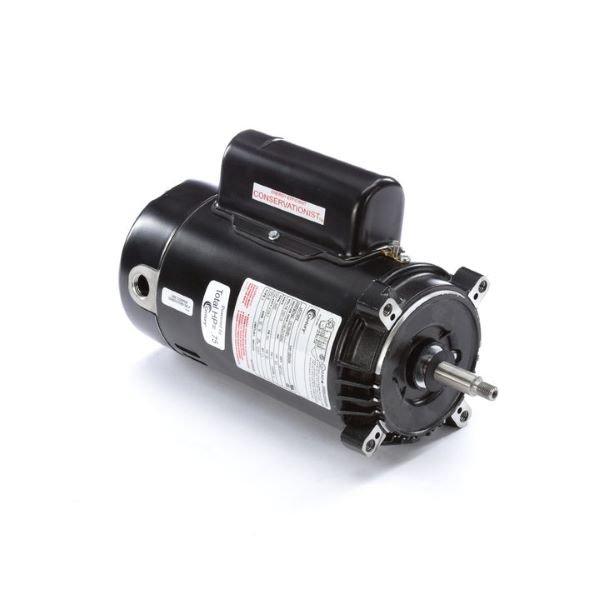

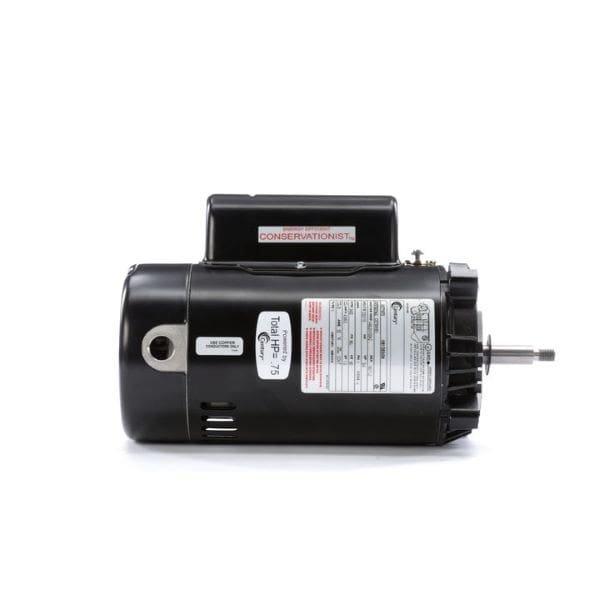

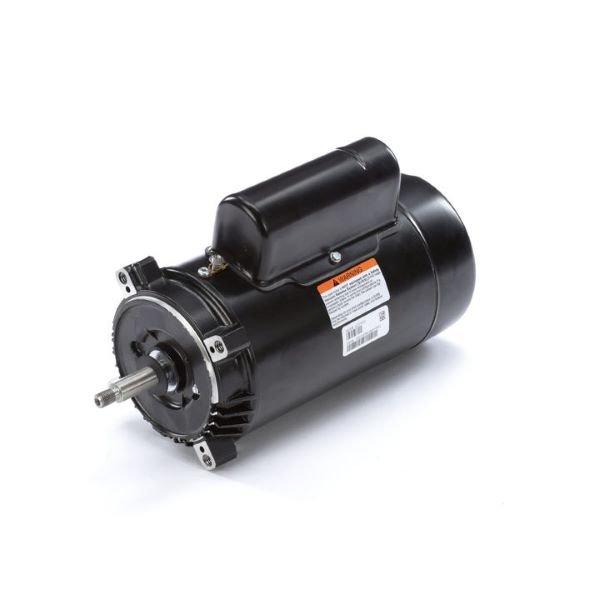

Century A.O. Smith - 56J C-Face 3/4 HP Single Speed Up Rated Pool Filter Motor, 8.0/4.0A 115/230V
$349.99
The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool
More Details
How to get it
Store Pickup
Pickup In Store
The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool
- Auto Protector
- NEMA 56C Face Mount
- Open Dripproof
- Capacitor Start and Capacitor Start-Capacitor Run
- Rotation: CCW Pump End
- Sealed Ball Bearings
- Sealed switch design
- 1081 Design
- 50 C Ambient
- 60 Hertz
- 303 Stainless Steel Shaft
The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool environment. It has a threaded shaft that allows for convenient and direct mounting. With horsepower ratings ranging from 3/4-1/8"P to 2-1/3HP, the Two-Compartment NEMA C-Face Pool Filter Motor provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor does not include a Hi/Lo switch but the end cover and switch assembly may be purchased separately for remote operation.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor operates at a higher efficiency level than standard efficiency motors. Its aggressive stamina comes from durable bearings and smaller, increased aerodynamic cooling fans that work to eliminate failure rates and unnecessary energy expenditures, ultimately reducing high operating costs
| Horsepower: | 3/4 HP |
| Speed Settings: | Single Speed |
| Shaft Type: | Threaded |
| Service Factor: | 1.00 - 1.25 |
| Flange Type: | C Flange |
| Phase Type: | Single Phase |
| Voltage: | 115V / 230V |
| Installation Type: | Residential |
| Energy Efficiency: | High Energy Efficiency |
| Rating Type: | Up-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Compatible Pumps: | SP2605X7 |
| Compatible Pumps: | SP3005X7AZ |
| Compatible Pumps: | SP2800X7 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Pump Speed: | Single |
| Service Factor: | 1 |
| Total Horsepower: | 0.75 THP |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
