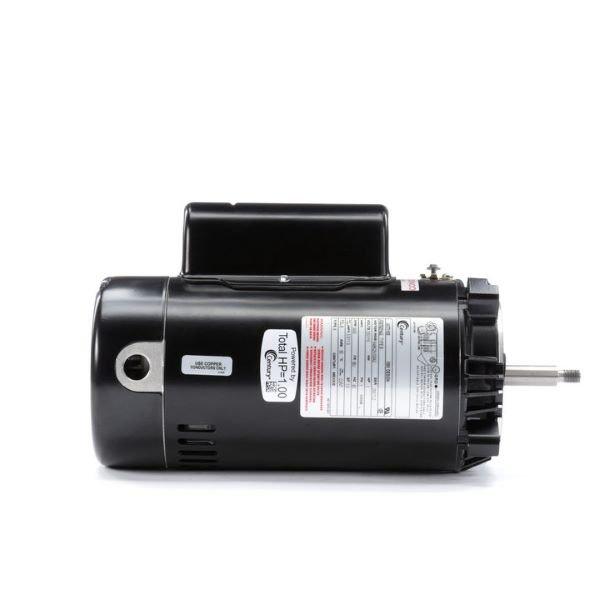

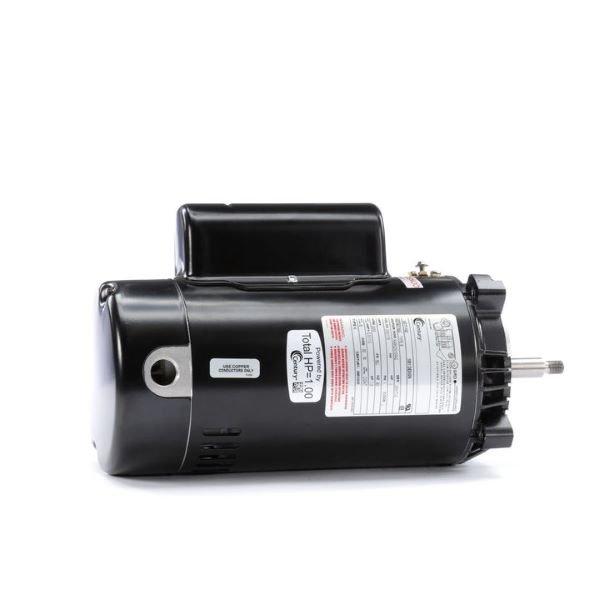

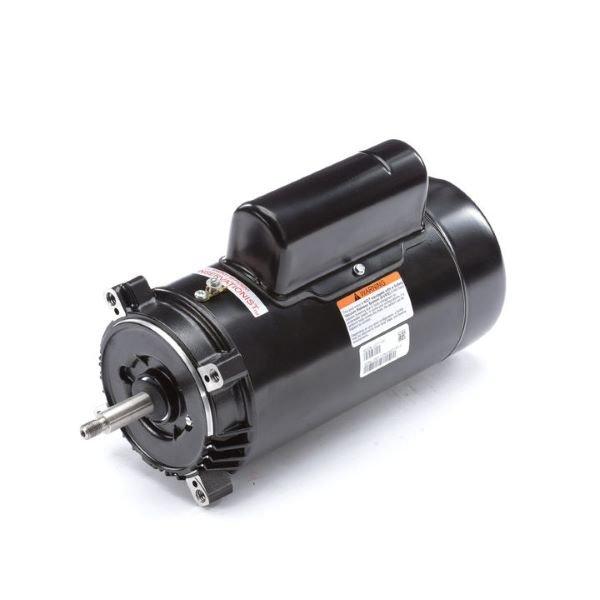

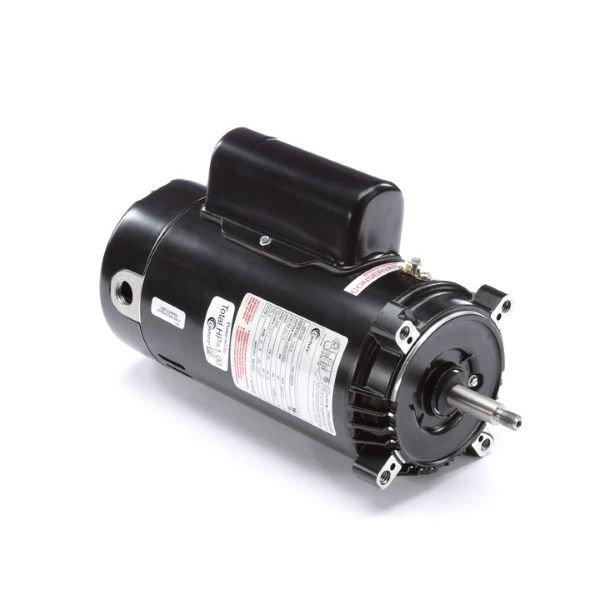

Century A.O. Smith - 56J C-Face 1 HP Single Speed Up Rated Pool Filter Motor, 11.0/5.5A 115/230V

Item No. 319190 | Manufacturer SKU: UCT1102
Item No. 319190 | Manufacturer SKU: UCT1102
Century A.O Smith  56J C-Face 1 HP Single Speed Up Rated Pool Filter Motor 11.0/5.5A 115/230V
Century A.O Smith  56J C-Face 1 HP Single Speed Up Rated Pool Filter Motor 11.0/5.5A 115/230V
Century A.O Smith  56J C-Face 1 HP Single Speed Up Rated Pool Filter Motor 11.0/5.5A 115/230V
Century A.O Smith  56J C-Face 1 HP Single Speed Up Rated Pool Filter Motor 11.0/5.5A 115/230V
$399.99

The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool More Details

You can buy this product once, or subscribe to have this product delivered to you as frequently as you wish.

You can edit or cancel your membership anytime.
How to get it
Store Pickup Pickup In Store

The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool
  • Auto Protector
  • NEMA 56C Face Mount
  • Open Dripproof
  • Capacitor Start and Capacitor Start-Capacitor Run
  • Rotation: CCW Pump End
  • Sealed Ball Bearings
  • Sealed switch design
  • 1081 Design
  • 50 C Ambient
  • 60 Hertz
  • 303 Stainless Steel Shaft

The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool environment. It has a threaded shaft that allows for convenient and direct mounting. With horsepower ratings ranging from 3/4-1/8"P to 2-1/3HP, the Two-Compartment NEMA C-Face Pool Filter Motor provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor does not include a Hi/Lo switch but the end cover and switch assembly may be purchased separately for remote operation.

Single Phase
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Energy Efficiency
This motor operates at a higher efficiency level than standard efficiency motors. Its aggressive stamina comes from durable bearings and smaller, increased aerodynamic cooling fans that work to eliminate failure rates and unnecessary energy expenditures, ultimately reducing high operating costs

Speed Settings: Single Speed
Flange Type: C Flange
Energy Efficiency: High Energy Efficiency
Voltage: 115V / 230V
Shaft Type: Threaded
Installation Type: Residential
Service Factor: 1.00 - 1.25
Phase Type: Single Phase
Horsepower: 1 HP
Rating Type: Up-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Compatible Pumps: SP2607X10
Compatible Pumps: SP3007X10AZ
Compatible Pumps: SP2807X10
Manufacturer: Century A.O. Smith
Warranty: 1-Year

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
