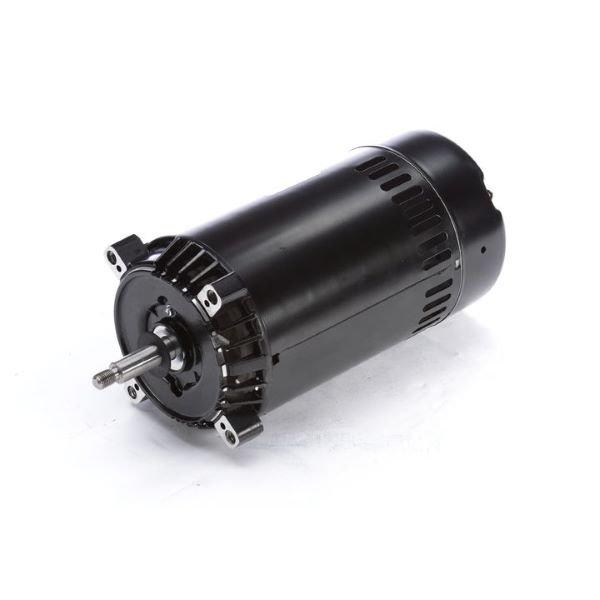

Century A.O. Smith - 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor, 11.0/5.5A 115/230V

Item No. 620026 | Manufacturer SKU: ST1052
Item No. 620026 | Manufacturer SKU: ST1052
Century A.O Smith 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor 11.0/5.5A 115/230V
Century A.O Smith 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor 11.0/5.5A 115/230V
Century A.O Smith 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor 11.0/5.5A 115/230V
Century A.O Smith 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor 11.0/5.5A 115/230V
Century A.O Smith 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor 11.0/5.5A 115/230V Century A.O Smith 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor 11.0/5.5A 115/230V Century A.O Smith 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor 11.0/5.5A 115/230V Century A.O Smith 56J C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor 11.0/5.5A 115/230V
$249.99

Free Installation on In Ground Equipment Available until 2/20/2025!

The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design. More Details
How to get it
Store Pickup Pickup In Store

The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design.
  • Auto Protector
  • NEMA 56C Face Mount
  • Open Dripproof
  • Capacitor Start and Capacitor Start-Capacitor Run
  • Rotation: CCW Pump End
  • Sealed Ball Bearings
  • Sealed switch design
  • 1081 Design
  • 50 C Ambient
  • 60 Hertz
  • 303 Stainless Steel Shaft

The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design. With horsepower ratings from 1/2"P to 3HP, the NEMA C-Face Pool Filter Motor is Full-Rated and provides long lasting and trustworthy performance. Its standard efficiency design is the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with an open drip proof enclosure, the NEMA C-Face Pool Filter Motor is sure to last.

Single Phase
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Standard Efficiency
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation

Phase Type: Single Phase
Shaft Type: Threaded
Service Factor: 1.50 - 1.75
Flange Type: J Flange
Installation Type: Residential
Horsepower: 1/2 HP
Voltage: 115V / 230V
Flange Type: C Flange
Voltage: 120V / 240V
Speed Settings: Single Speed
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Energy Efficiency: Standard
Compatible Pumps: SP2600X5
Compatible Pumps: SP2800X5
Manufacturer: Century A.O. Smith
Warranty: 1-Year
Pump Speed: Single
Service Factor: 1.6
Total Horsepower: 0.80 THP

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
