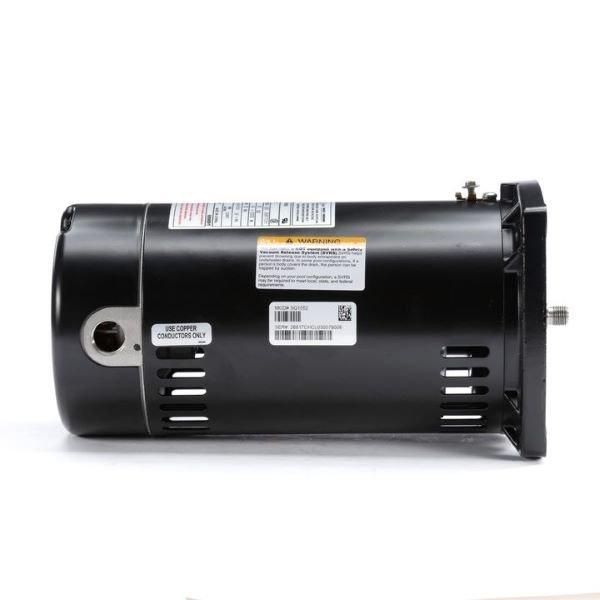

Century A.O. Smith - 48Y Square Flange 1/2 HP Full Rated Pool Filter Motor, 13.4/6.7A 115/230V
$279.99
The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design.
More Details
How to get it
Store Pickup
Pickup In Store
The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design.
- Auto Protector
- Capacitor Start
- Class B Insulation
- Open Dripproof
- Rotation: CCW Pump End
- 303 Stainless Steel Threaded Shaft
- Sealed Ball Bearings
- 50 C Ambient
- 60 Hertz
- UL1081
The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design. With horsepower ratings from 1/3HP to 3HP, the Two-Compartment Square Flange Pool Filter Motor is available in Full or Up-Rated models and provides long lasting and trustworthy performance. Used on many Sta-Rite, Red Jacket, Pac Fab and American products, this motor is the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Filter Motor is sure to last.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Horsepower: | 1/2 HP |
| Speed Settings: | Single Speed |
| Phase Type: | Single Phase |
| Flange Type: | Square Flange |
| Service Factor: | 1.75 - 2.00 |
| Voltage: | 120V / 240V |
| Voltage: | 115V / 230V |
| Installation Type: | Residential |
| Shaft Type: | Threaded |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Motor Frame: | 48 Frame |
| Compatible Pumps: | SP3205EE |
| Compatible Pumps: | P2R5C |
| Compatible Pumps: | MPE6C-204L |
| Compatible Pumps: | PE5CL |
| Compatible Pumps: | P6E6C-204L |
| Compatible Pumps: | P6R6C3-204 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Pump Speed: | Single |
| Service Factor: | 1.9 |
| Total Horsepower: | 0.95 THP |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
