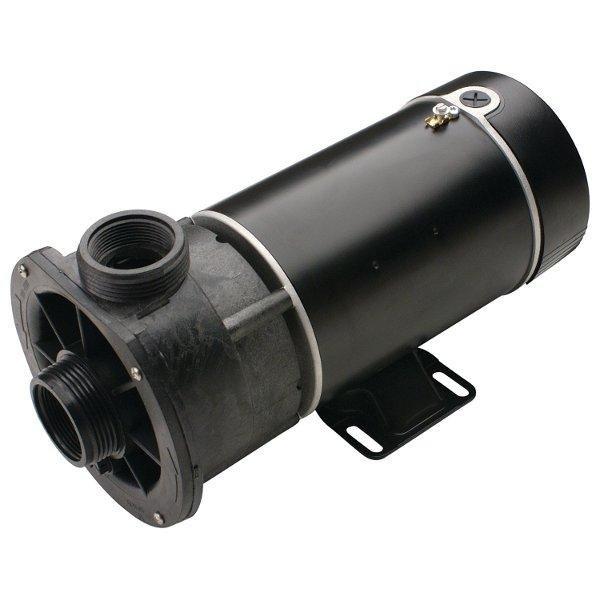

Waterway - Center Discharge 48-Frame 3/4HP Dual-Speed Spa Pump, 115V

The Center Discharge 48-Frame has reliable performance. It features Viton seals and a rotatable wet end for easy installation. The Center Discharge 48-Frame is the perfect replacement and is backed by an 18 month warranty. The Waterway's commitment to design, innovation and quality American made products makes for a solid combination of style and dependability.

Center vs. Side Discharge Pumps
Swimming pool and spa pumps are classified, in part, according to the orientation of their discharge openings. Center discharge pumps have an opening located in the center of the wet end, while side discharge pumps have an opening located on the side of the wet end. Water is propelled through the openings and flows out through the jets in your spa. Side discharge pumps are up to 60% more efficient for pumping out high volumes of water than center discharge pumps.

What the frame size on a spa pump mean?

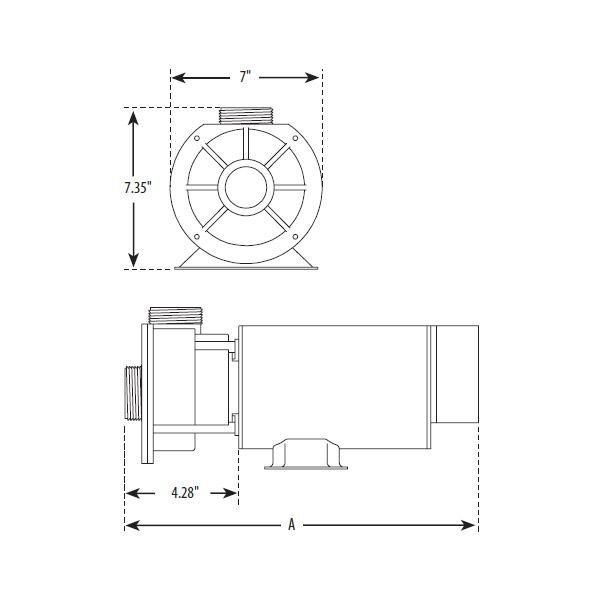

The frame size on a spa pump is the physical size of the spa pump motor. The frame is the piece that mounts the wet end to the motor. The frame size is located on the motor's ID plate, usually marked with an F for frame size. The thru-bolt spacing is also an indicator of frame size. A 48 frame motor has bolts spaced less than 4 inches apart, and the 56 frame motor has bolts with spacing more than 4 inches apart.

Eighteen Month Warranty, see Owner's Manual for a full description of warranty claims and coverage details.
