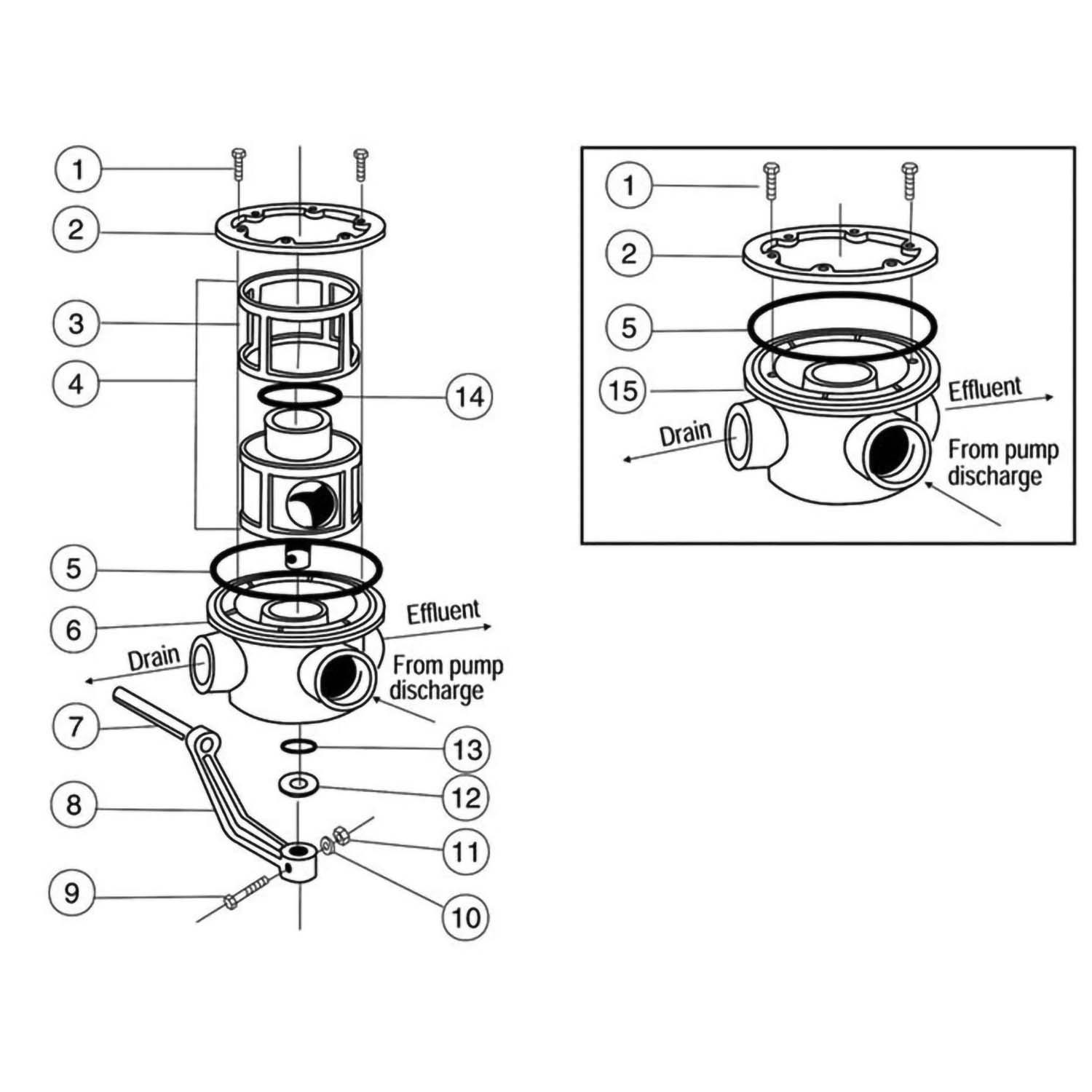

Pentair Multiport Backwash Valve SM & SMBW 2000 Series Backwash Valve Part Schematic
Part Selector:
(Click to view larger)
Parts:
#1
Pentair - Screw, 1/4-20 x 5/8in. Hh SS
SKU:
609028
Details:
SCREW, 1/4-20 X 5/8" HH SS
Availability:
In Stock
$2.49
#3

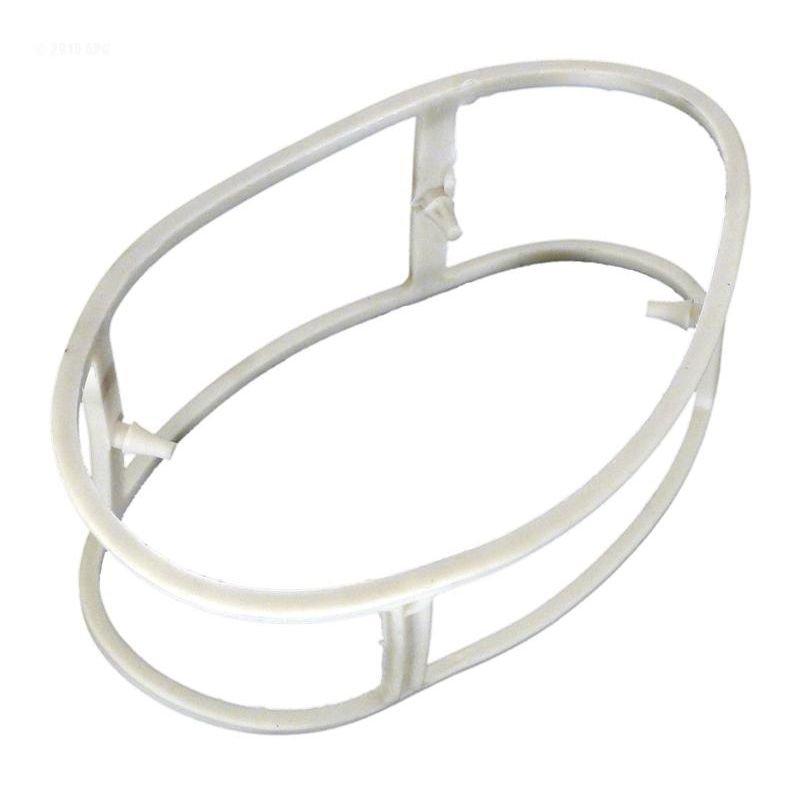

Pentair - Seal, Bw Valve Rotor Tapered
SKU:
44917
Details:
SEAL, BW VALVE ROTOR TAPERED
Availability:
In Stock
$26.99
#4
$166.99
#8

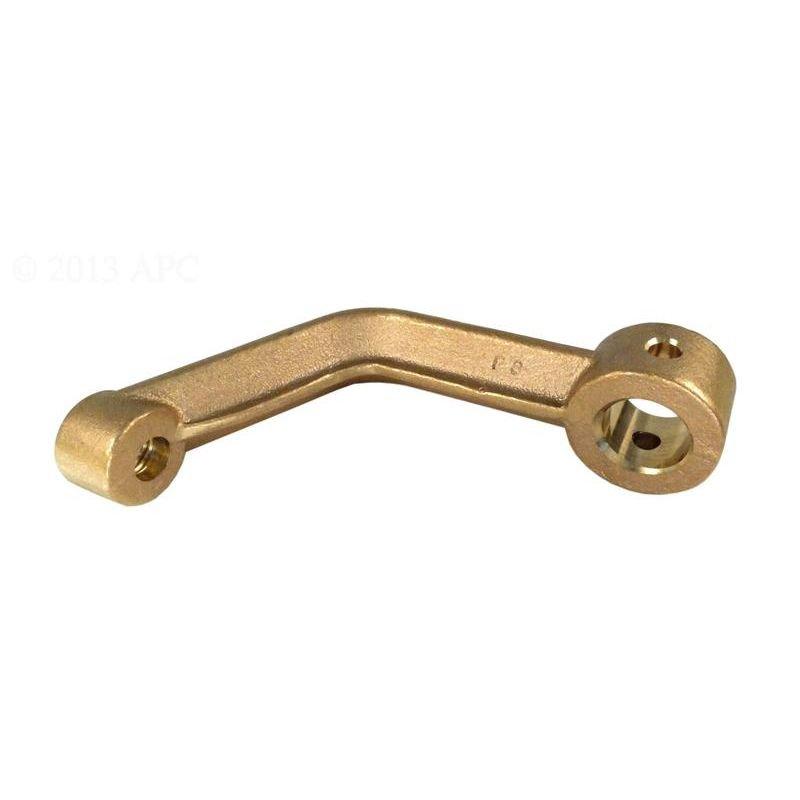

Pentair - Handle, Extension B/W Brass
SKU:
44320
Details:
HANDLE, EXTENSION B/W BRASS
Availability:
In Stock
$159.99
#9
Pentair - Stud Bolt SS 1/4-20 x 1.75
SKU:
609113
Details:
STUD BOLT SS 1/4-20 x 1.75
Availability:
In Stock
$1.99
#10
Pentair - Lock Washer, 1/2in. OD, 9/32in. ID, SS
SKU:
609114
Details:
LOCK WASHER, 1/2" OD, 9/32" ID, SS
Availability:
In Stock
$0.39
#11
Pentair - Nut 1/4 - 20 Hex for IntelliFlo/IntelliFlo VS
SKU:
603247
Details:
Replacement Nut 1/4 - 20 Hex for the Pentair IntelliFlo 011018 and IntelliFlo VS 348019 Pool Pumps.
Availability:
In Stock
$1.99
#12

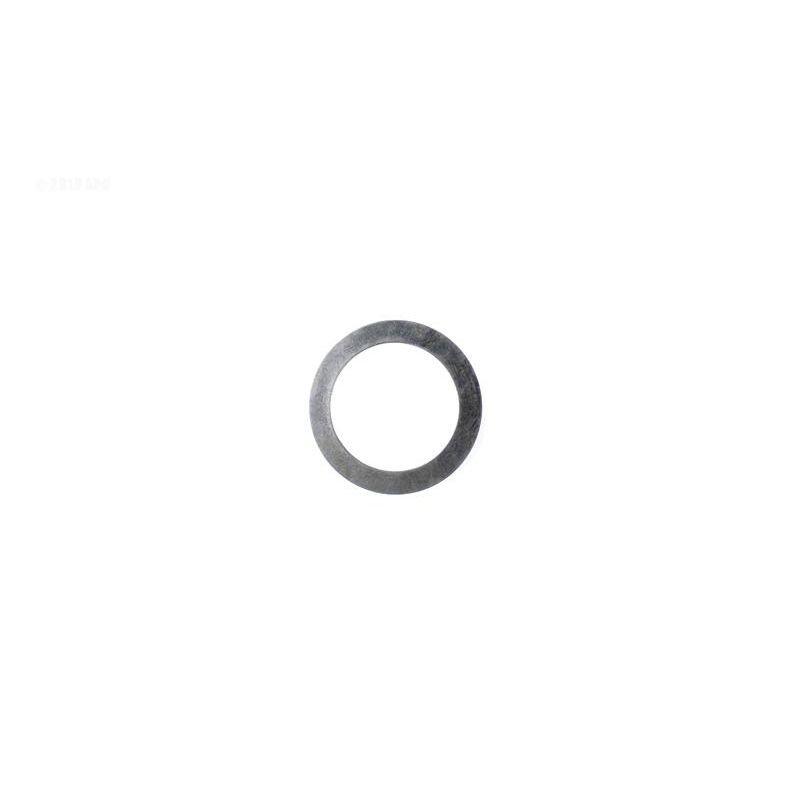

Pentair - Washer, 1-1/8in. OD, 13/16in. ID, 1/32in. Thick, SS
SKU:
603246
Details:
WASHER,1-1/8" OD,13/16" ID,1/32" THICK,SS
Availability:
In Stock
$6.99
#14
Pentair - Union O-Ring for Clean & Clear
SKU:
323181
Details:
Replacement Union O-Ring for the Pentair Clean & Clear Cartridge Pool Filters.
Availability:
In Stock
$2.99
#14
Epp - Pro-Grid Filter O-Ring
SKU:
361411
Details:
Hayward SX200Z4 Pro-Grid Filter O-Ring
Availability:
In Stock
$2.99
#0
Hydroseal - Hydro Seal Parco O-Ring, Bracket to Volute
SKU:
324600
Details:
O-RING, BRACKET TO VOLUTE
Availability:
In Stock
$1.99
#0

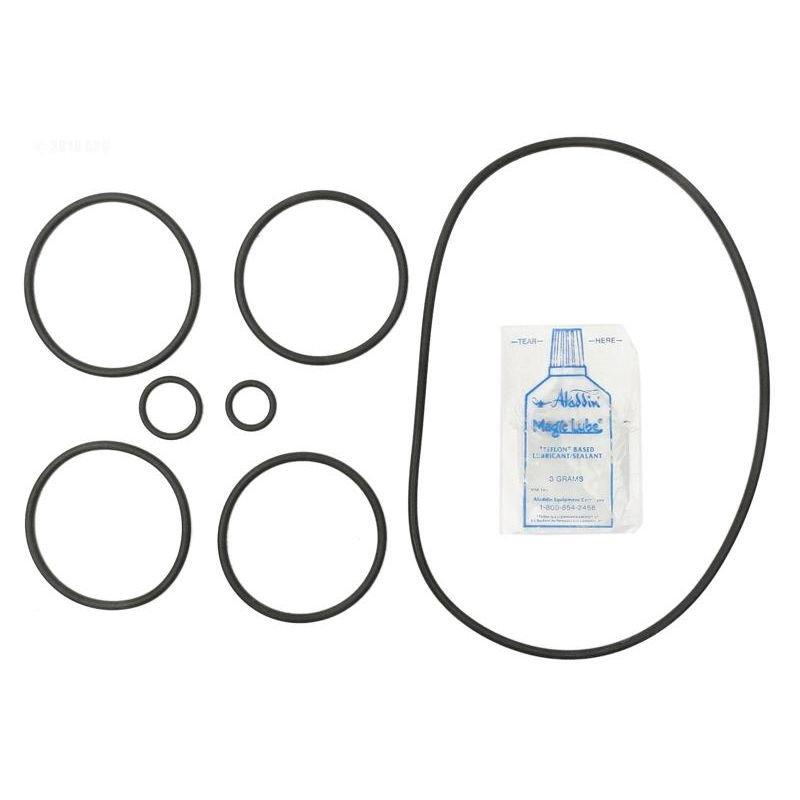

Epp - O-Ring & Gasket Kit, Includes 1 Each Rotor Shaft And Valve Body O-Ring, 3 Each Rotor Collar O-Ring
SKU:
368511
Details:
Includes: 1 each rotor shaft o-ring, valve body o-ring; 3 each rotor collar o-ring.
Availability:
In Stock
$10.99
