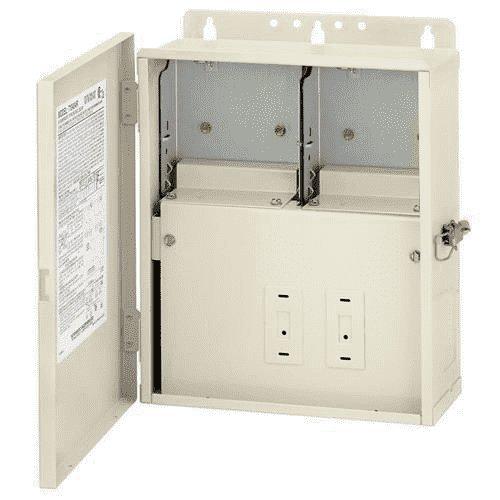

Intermatic Outdoor Enclosure Only (No Timers) - T10000
- Case: 12 (30.5 cm) H x 12 (30.5 cm) W x 4-1/4 (10.8 cm) D, 0.048 steel with electros
- Knockouts: Five combination 1/2" - 3/4" and two combination 3/4-1 knockouts on the bottom. One combination 1/2" - 3/4" on the left side and one combination 3/4-1 on the back. One knockout 1-3/4 x 2-3/4 on the right side for mounting switches or GFCI.
- Center Rating: 92 Amp per leg, 168 Amp Max. 120-240 VAC or 120-208 VAC single phase - 60 Hz.
- Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) - 240 VAC
- Agency Approval: CSA/C-US
The T10000R Series Control Centers feature an all-weather enclosure and contain one or two heavy duty timer mechanisms. In addition, they have provision to install switches or GFCI receptacle on the side and additional switches inside. The enclosure accepts any combinations of P1353ME or P4243ME or T100M or RC2000M or PF1000M Series mechanisms.
| Parts and Hardware: | Housing |
| Product Type: | Automatic Control |
| Manufacturer: | Intermatic |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
