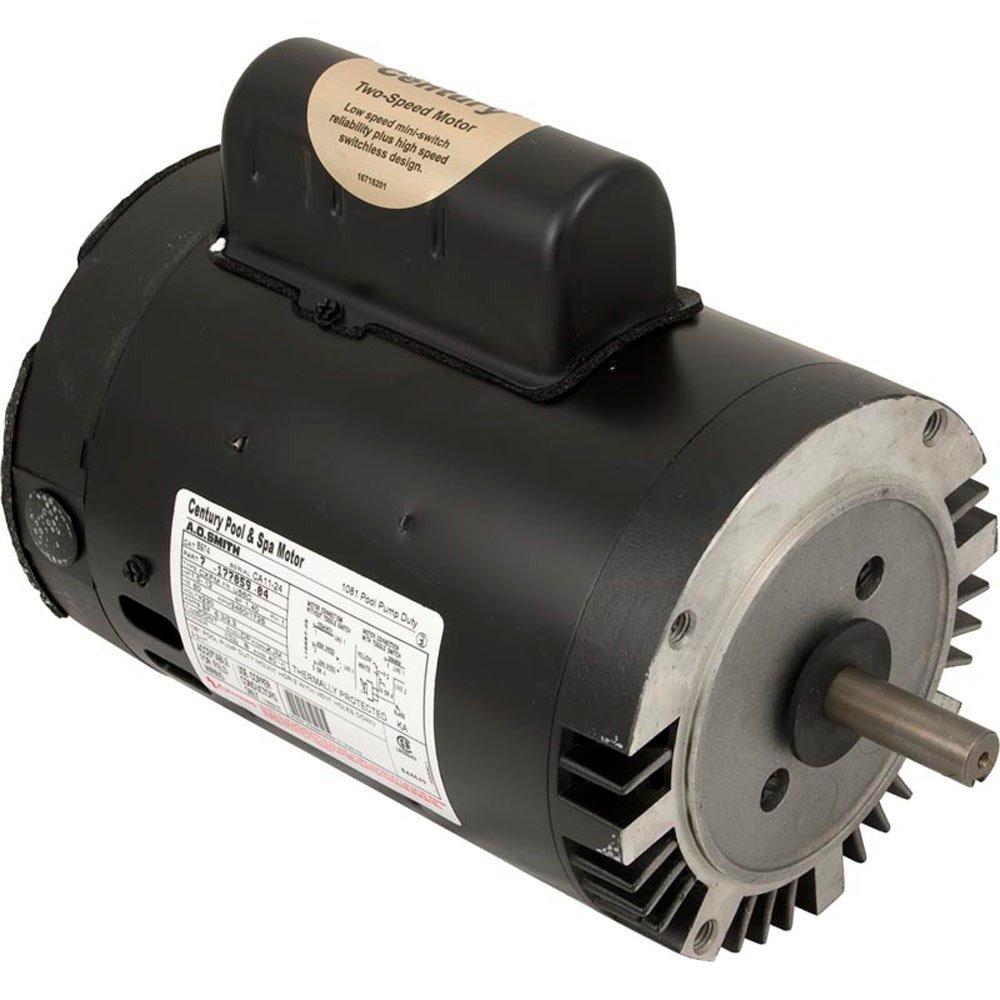

Century A.O. Smith - Emerson 56C C-Flange Dual Speed 1/0.12HP Full Rated Pool and Spa Motor

Emerson 56C C-Flange Dual Speed 1/0.12HP Full Rated Pool and Spa Motor

Century A.O. Smith - Emerson 56C C-Flange Dual Speed 1/0.12HP Full Rated Pool and Spa Motor

Item No. 38528
Manufacturer SKU: EB974
5 out of 5 Customer Rating
With its flawless design and presentation, the Emerson 56 C-Flange Dual Speed Motor is a grade-A replacement motor for your Pool and Spa. More Details
$319.99
Availability:
  • In Stock
Store Availability:


Description

With its flawless design and presentation, the Emerson 56 C-Flange Dual Speed Motor is a grade-A replacement motor for your Pool and Spa.
  • Two Compartment
  • 50 Degree C Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Sealed Ball Bearings
  • Thermally Protected
  • Service Factor: 1.4
  • RPM: 3450/1725
  • 6.8/2.8A 230V
  • Shaft: Keyed
  • Length without Shaft: 11.27

Details

With its flawless design and presentation, the Emerson 56 C-Flange Dual Speed Motor is a grade-A replacement motor for your Pool and Spa. The Emerson 56 C-Flange motor is constructed with a stainless steel shaft as well as triple bearing protection and sealed ball bearings, making Emerson motors highly durable. Its C-flange mounting makes installation hassle-free and the open drip proof engineering ensures the prevention of water damage with its open ventilation. As a dual speed motor, it operates at two different voltages for reliable and superior performance, running at several different speeds depending on model type. The Emerson 56 C-Flange motor runs at 1HP, .12HP, and 230V and is a distinguished choice in mechanical replacement equipment.

Highlights

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Dual Speed Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Dual Speed Motor is built to last
C-Frame
The Emerson 56 C-Flange Motor boasts a C-Frame body with a threaded shaft for durable mounting and stability
Energy Efficiency
The Emerson 56 C-Flange Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Specs

Horsepower: 1 HP
Voltage: 240V
Pool Type: In Ground
Flange Type: C Flange
Voltage: 230V
Horsepower: 1/0.12 HP
Speed Settings: Dual Speed
Service Factor: 1.25 - 1.50
Rating Type: Full-Rated
Product Type: Pool Motor
Energy Efficiency: Standard
Motor Frame: 56 Frame
Manufacturer: U.S. Motors Emerson


Warranty

See Owner's Manual for details
