U.S. Motors - Emerson 56J TriStar Single Speed 1-1/2HP Up-Rated Pool and Spa Motor
$399.99
Free Installation on In Ground Equipment Available until 2/20/2025!

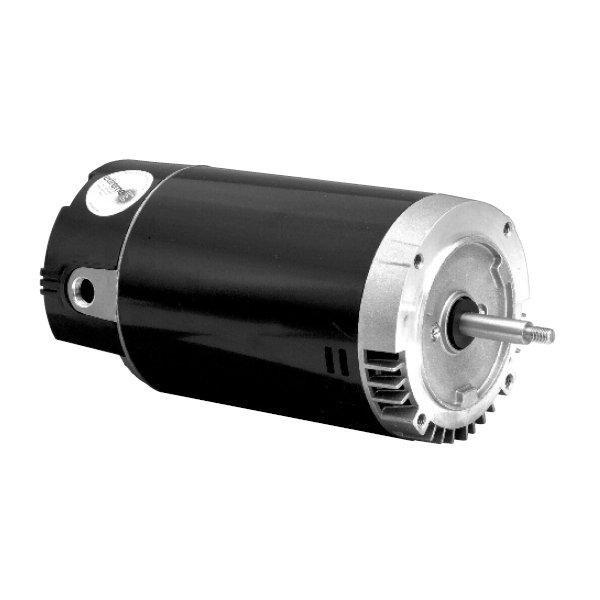

The Emerson 56 C-Flange Motor is a Hayward TriStar replacement motor for your Pool and Spa.
More Details
How to get it
Store Pickup
Pickup In Store
Ship To Home
- Not Available for this item
The Emerson 56 C-Flange Motor is a Hayward TriStar replacement motor for your Pool and Spa.
- Two Compartment
- Thermally Protected
- 1081 Design
- Shaft Threads - 7/16-20 UNF-2A
- Class B Insulated
- Continuous Duty
- 60 Degree C Ambient
- Service Factor: 1.25
- RPM: 3450
- Length without Shaft: 11.27
- 8.5-7.8/15.6A 208-230/115V
The Emerson 56 C-Flange Motor is a Hayward TriStar replacement motor for your Pool and Spa. With premium energy efficiency, it offers distinguished presentation, saving you time and money with its affordable design. Thermally protected, the Emerson 56 C-Flange Motor comes with triple bearing protection and open drip proof ventilation for water damage prevention. It is built with a stainless steel shaft and sealed ball bearings for dependable engineering and promises Class B Insulation for superior energy-saving operation, running at 1-1/2"P and 208-230/115V. For the best in replacement motors, the Emerson 56 C-Flange is a desired choice.
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Dual Speed Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Dual Speed Motor is built to last
The Emerson 56 C-Flange Motor features a J-Frame that's ideal for jet pump service and is completely versatile with its threaded shaft and 56 C-Flange face
The Emerson 56 C-Flange Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs
| Voltage: | 115V / 208 - 230V |
| Service Factor: | 1.00 - 1.25 |
| Speed Settings: | Single Speed |
| Horsepower: | 1-1/2 HP |
| Energy Efficiency: | High Energy Efficiency |
| Flange Type: | C Flange |
| Rating Type: | Up-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Manufacturer: | U.S. Motors Emerson |
See Owner's Manual for details
