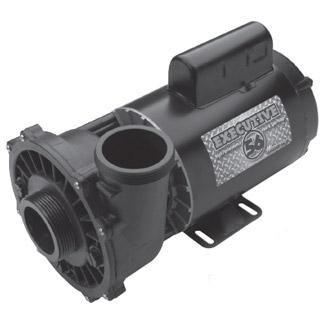

Waterway - Executive 56-Frame 2HP Dual-Speed Spa Pump, 2-1/2in. Intake, 2in. Discharge, 230V

Item No. 308616 | Manufacturer SKU: 3720821-13
Item No. 308616 | Manufacturer SKU: 3720821-13
Waterway  Executive 56-Frame 2HP Dual-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway  Executive 56-Frame 2HP Dual-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway  Executive 56-Frame 2HP Dual-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway  Executive 56-Frame 2HP Dual-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V Waterway  Executive 56-Frame 2HP Dual-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V Waterway  Executive 56-Frame 2HP Dual-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
$599.99

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings. More Details
How to get it
Store Pickup Pickup In Store

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings.
  • Executive wet end designed specifically for 56-frame motors
  • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
  • Two speed motors have four sets of insulated windings for increased efficiency
  • 56-frame motor for added strength, cooler operating temperature, and longer motor life
  • Larger 2-1/2" intake for improved flow performance and reduced noise
  • Large 6-1/2" diameter wet end for higher head pressure
  • Split capacitor, (start and run) for less energy consumption
  • Thermally protected to extend life expectancy of motor
  • Highly versatile wet end can be rotated every 90
  • Viton seals

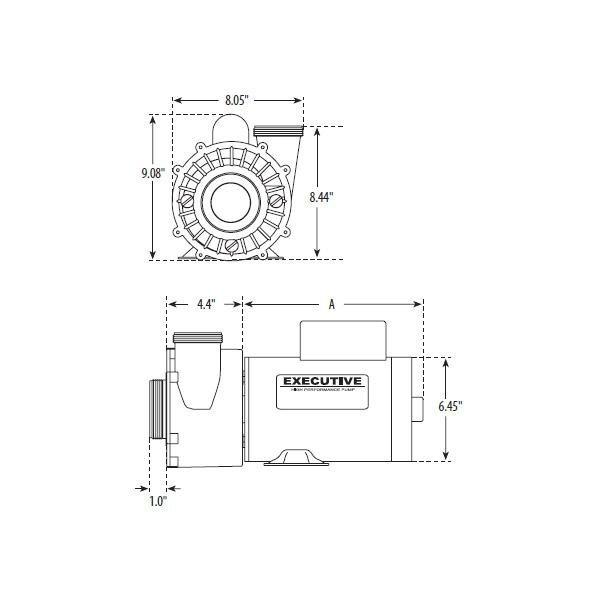

  • Dimensions (H x W x L): 9.08" x 8.05" x 8.875"

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2"diameter wet end for higher head pressure. With Viton Seals and a split capacitor (start and run) for less energy consumption, along with a three year warranty on its motor and wet end, the Executive is a must.

Center vs. Side Discharge Pumps
Swimming pool and spa pumps are classified, in part, according to the orientation of their discharge openings. Center discharge pumps have an opening located in the center of the wet end, while side discharge pumps have an opening located on the side of the wet end. Water is propelled through the openings and flows out through the jets in your spa. Side discharge pumps are up to 60% more efficient for pumping out high volumes of water than center discharge pumps.

What the frame size on a spa pump mean?
The frame size on a spa pump is the physical size of the spa pump motor. The frame is the piece that mounts the wet end to the motor. The frame size is located on the motor's ID plate, usually marked with an F for frame size. The thru-bolt spacing is also an indicator of frame size. A 48 frame motor has bolts spaced less than 4 inches apart, and the 56 frame motor has bolts with spacing more than 4 inches apart.

Voltage: 240V
Discharge Type: Side Discharge
Pump Speed: Dual
Horsepower: 2 HP
Parts and Hardware: Pump
Product Type: Spa Pump
Manufacturer: Waterway
Warranty: 1-Year

One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
