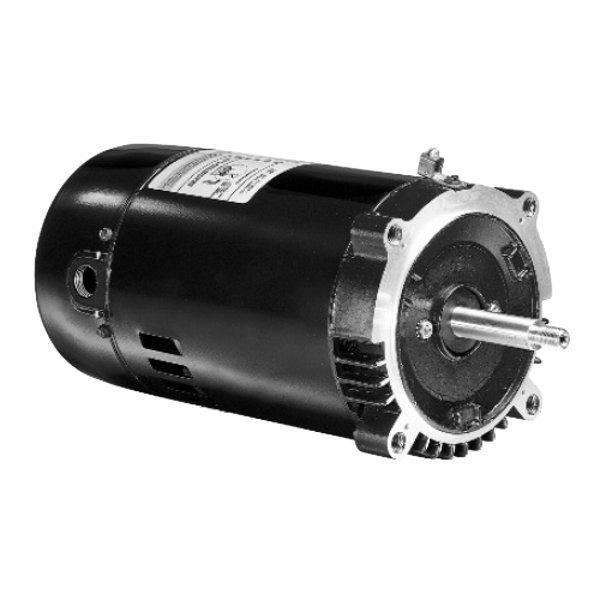

U.S. Motors - Emerson 56J C-Flange 1-Speed 2-1/2HP Up-Rated Pool and Spa Motor

Item No. 38623 | Manufacturer SKU: EUST1252
4.3 out of 5 Customer Rating
Item No. 38623 | Manufacturer SKU: EUST1252
4.3 out of 5 Customer Rating
U.S Motors Emerson 56J C-Flange 1-Speed 2-1/2HP Up-Rated Pool and Spa Motor
$274.69 Price reduced from $409.99 to

The Emerson 56 J-Frame C-Flange boasts efficient performance to ensure the motor is protected and stays dry. More Details

subscription order icon Membership Available

You can buy this product once, or subscribe to have this product delivered to you as frequently as you wish.

You can edit or cancel your membership anytime.
How to get it
Store Pickup Pickup In Store
Earn at least $13 in pool perks for this item by joining Pool Perks. Join/Sign In Now

The Emerson 56 J-Frame C-Flange boasts efficient performance to ensure the motor is protected and stays dry.
  • Triple Bearing Protection
  • 1081 Design
  • Shaft Threads 7/16-20 UNF-2A
  • Continuous Duty
  • 50 Degrees Celsius Ambient
  • Voltage Selection Device (Dual Voltage Only)
  • Service Factor: 1.5
  • RPM: 3450
  • 10A 208-230/115V
  • Length without Shaft: 11.09

The Emerson 56 J-Frame C-Flange boasts efficient performance with its Two compartments design and open drip proof enclosure to ensure the motor is protected and stays dry. Its capacitor start design runs on high efficiency and performs continuously. Perfect for your pool or spa, the Emerson 56 J-Frame C-Flange motor is designed to last with its stainless steel shaft and sealed ball bearings. Its threaded shaft allows for a secure fit while providing a stronger structure. Its 5.5 frame is built for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 J-Frame C-Flange is a single speed pool and spa motor with up-rated 2 1/2"HP, giving it the capability to perform at higher standards for maximum power.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 J-Frame C-Flange motor delivers efficient operation. Little maintenance is required and the Emerson 56 J-Frame C-Flange motor is built to last
J-Frame
The Emerson 56 J-Frame C-Flange motor features a J-Frame that's ideal for jet pump service and completely versatile with its threaded shaft and 56 C-Flange face
Standard Efficiency
The Emerson 56 J-Frame C-Flange motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Speed Settings: Single Speed
Service Factor: 1.00 - 1.25
Voltage: 115V / 208 - 230V
Flange Type: C Flange
Flange Type: J Flange
Horsepower: 2-1/2 HP
Rating Type: Up-Rated
Product Type: Pool Part
Energy Efficiency: Standard
Motor Frame: 56 Frame
Manufacturer: U.S. Motors Emerson

See Owner's Manual for details
