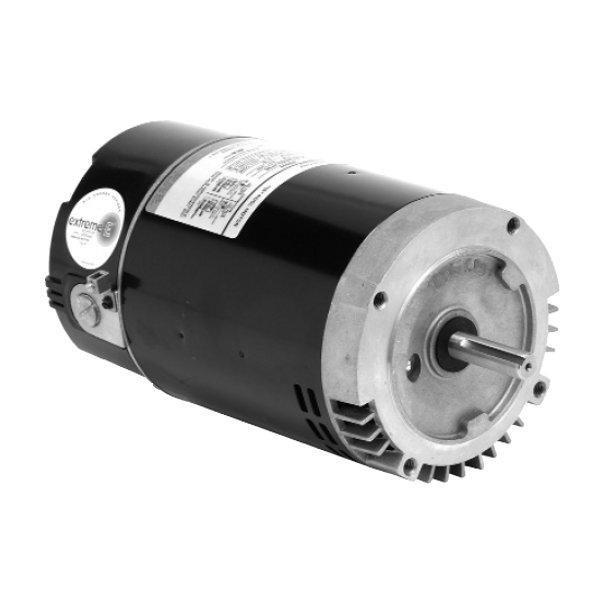

U.S. Motors - Emerson 56C C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor
$111.49
Price reduced from
$222.99
to
SALE - 50% Off
The Emerson 56 C-Flange Motor is dripproof to prevent water damage, built with ventilation openings.
More Details
How to get it
Store Pickup
Pickup In Store
Ship To Home
- Not Available for this item
The Emerson 56 C-Flange Motor is dripproof to prevent water damage, built with ventilation openings.
- 50 Degree C Ambient
- 1081 Design
- Continuous Duty
- Class B Insulated
- 303 Stainless Steel Shaft
- Thermally Protected
- Service Factor: 1.5
- RPM: 3450
- Shaft: Keyed
- 6.0/12.0A 115V/230V
- Length without Shaft: 10.77
For precision and advanced technology, the Emerson 56 C-Flange Motor for pools and spas is engineered with a two-compartment design, sporting triple bearing protection and sealed ball bearings. With a switchless design, the Emerson 56 C-Flange Motor is drip proof to prevent water damage, built with ventilation openings. It requires little maintenance and has been designed for dependability and a long lifespan. The Emerson 56 C-Flange Motor consistently operates at one speed, working at 3/4HP and 115/230V.
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last
Emerson 56 C-Flange Motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model
| Speed Settings: | Single Speed |
| Pool Type: | In Ground |
| Horsepower: | 3/4 HP |
| Service Factor: | 1.50 - 1.75 |
| Voltage: | 120V / 240V |
| Flange Type: | C Flange |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Energy Efficiency: | Standard |
| Manufacturer: | U.S. Motors Emerson |
| Pump Speed: | Single |
| Service Factor: | 1.5 |
| Total Horsepower: | 1.13 THP |
See Owner's Manual for details
